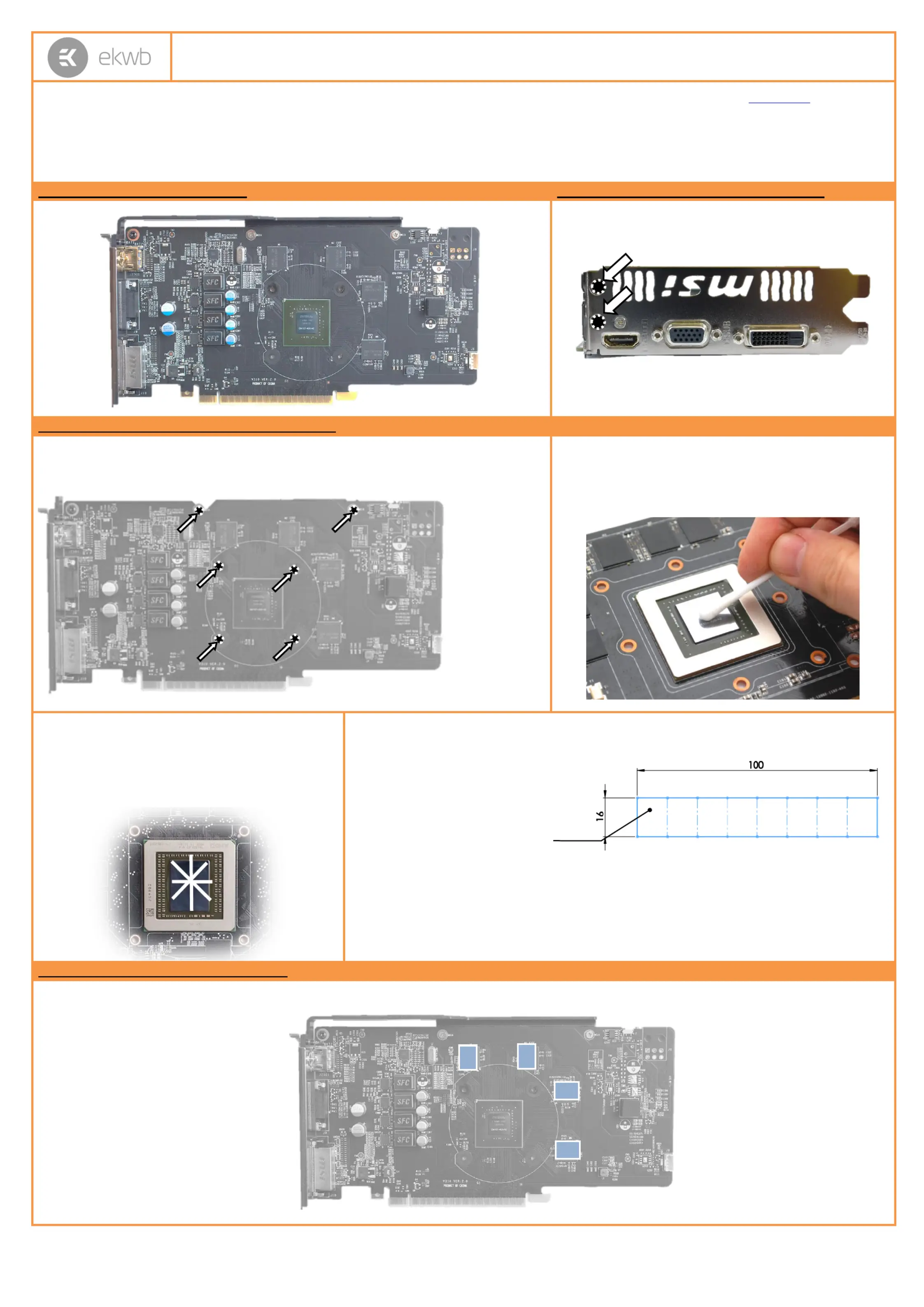

Installation manual for -FC750 GTX water block EK
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION. Sample picture of GeForce750 GTX series graphics card.
STEP 2: PREPARING YOUR GRAPHIC CARD.
1. REMOVING STOCK COOLER: Remove encircled screw on the
bracket (required only on certain models):
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
1 cont.. REMOVING STOCK COOLER. Remove all encircled screws. All heat sink assembly screws must
be removed. There are 4 screws on the back of the graphics card. All self-adhesive washers on the front
side of the circuit board must be removed.
2. CLEANING THE PCB. Carefully detach the original stock cooler
after removing screws securing it to the board. Wipe off the all
remains (by using non abrasive cloth or –
qtip
, as shown on sample
photo) of the original thermal compound until the components and
circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
3. APPLYING THERMAL COMPOUND. Wipe off the
remains (by using non abrasive cloth or –
q-tip
) of the original
thermal compound until the components and circuit board
are completely clean. Apply thermal compound: lightly coat
AMD
GPU chip with enclosed EK-TIM Ectotherm thermal
grease. EKWB recommends to apply thermal grease in cross
form for best rformance (see sample picture). pe
4. CUTTING THERMAL PADS. Your block comes with thermal pads, some of which are already pre-cut.
Others have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and
drivers. PLEASE REMOVE THE PROTECTIVE
FOIL FROM BOTH SIDES OF THE THERMAL
PADS PRIOR TO INSTALLATION.
Replacement thermal pads:
Thermal Pad D 0.5mm (RAM 16x) –
STEP 3: INSTALLING THE WATER BLOCK
1. PLACING THERMAL PADS ON PCB. Place thermal pads on chips so that numbers on chips match size of thermal pads. EKWB made sure users have more than
enough pads to cover all surfaces that need to be covered to make block fully functional).
1
1
1
1: Thermal pad D –0.5mm
(for memory IC):
1
1
1
1
1
1
1
1
1
