ADJUSTMENT PIN: PULL OUT TO
ADJUST DISPLAY VIEWING ANGLE
DS-PAN-1100 SERIES
DOCKING STATION
(NOT INCLUDED)
B
A
DETAIL B
(CLOSED)
SCALE 1 : 1
DETAIL A
(OPEN)
SCALE 1 : 1
HARDWARE KIT CONTENTS
ITEM #
DESCRIPTION
QTY.
FINISH
DRIVE STYLE/SIZE
1
MACHINE SCREW, PAN HEAD, 1/4"-20 x 1/2" LONG
3
WITH PATCH
PH3
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
SCREEN SUPPORT
DS-PAN-1100 SERIES
09/18/17
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
DS-DA-420_INST_9-17
PRODUCT DESCRIPTION
THIS PRODUCT SUPPLIES SUPPORT FOR THE
SCREEN OF THE COMPUTER WHEN DOCKED.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
PRODUCT NAME
REV. DATE
DRAWING NUMBER:
DS-DA-420

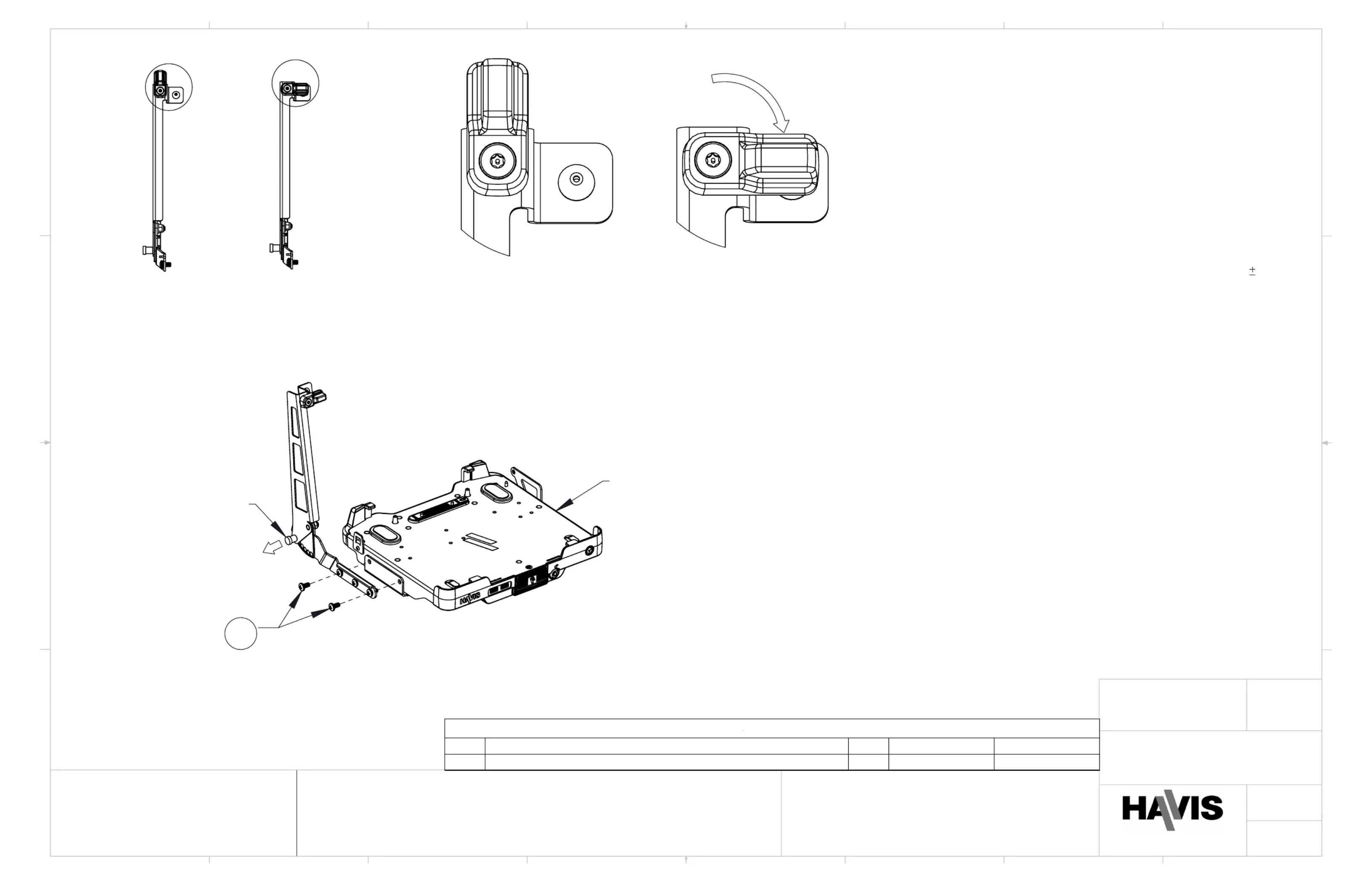

INSTALLATION INSTRUCTIONS:
NOTE:
- Docking station depicted may not match identically to
product purchased. However, all installation
instructions are still applicable unless otherwise noted.
TO INSTALL SCREEN SUPPORT, FIRST REMOVE
1.
THE SCREWS THAT FASTEN THE LH SIDE OF THE
MOUNTING BRACKET TO THE DS-PAN-1100
DOCKING STATION.
INSTALL 2X 1/4"- 20 x 1/2" PHMS THROUGH THE
2.
LOWER SCREEN SUPPORT BRACKET, THEN
THROUGH THE MOUNTING BRACKET AND INTO
DOCK. TORQUE FASTENERS TO 80 IN-LBS
10%.
NOTE:
- When a pre-applied thread-locking patch is not
present on hardware, it is recommended to apply a
drop of medium strength (blue) thread locking
adhesive to the threads of the hardware prior to
assembly.
DOCK COMPUTER IN DOCKING STATION.
3.
OPEN DISPLAY LATCH (DETAIL A).
4.
OPEN SCREEN TO MEET THE STOP BUMPER.
5.
PRESS SLIGHTLY ON TOP-LEFT CORNER OF
6.
SCREEN WHILE CLOSING LATCH OF SCREEN
SUPPORT OVER SIDE OF SCREEN HOUSING
(DETAIL B).
WHILE PULLING ON KNOB OF ADJUSTMENT PIN,
7.
ADJUST ARM OF SCREEN SUPPORT WITH SCREEN
TO DESIRED SETTING.
NOTE:
-
The screen support latch should be in the OPEN
position when the laptop screen is closed (DETAIL A).
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
WWW.HAVIS.COM
1-800-524-9900
F-730-019 REV A
