Motor

Battery

Electronic Speed Controller

Warnings

Specifications

User Guide

Features

ESC Programming

Programmable Items

Data Checking

Connections

CA UT IONS

Thank you for purchasing this product! Brushless power systems can be very

dangerous. Any improper use may cause personal injury and damage to the product

and related devices. We strongly recommend reading through this user manual before

use. Because we have no control over the use, installation, or maintenance of this

product, no liability may be assumed for any damages or losses resulting from the use

of the product. We do not assume responsibility for any losses caused by unauthorized

modifications to our product. Besides, we have the right to modify our product design,

appearance, features and usage requirements without notification.

AT T ENT ION

ESC/Radio Calibration

1Item 2 3 4

2. LiPo Cells

3. Voltage Cutoff Type

4. Cutoff Voltage

5. BEC Voltage

6. Start-up Time

7. Governor Parameter P

8. Governor Parameter I

9. Auto Restart Time

10. Restart Acceleration Time

11. Brake Type

12. Brake Force

13. Timing

14. Motor Rotation

15. Freewheeling

Proportional Reverse

3-6S

Hard Cutoff

2.8V-3.8V (Default 3.0V)

Normal

CCW

Disabled

*Auto Calculation

*Soft Cutoff

Disabled

5V-8V（Default 6V）

4s-25s（Default 15s）

0-9 (Default 4)

0-9 (Default 5)

0s-90s（Default 25s）

1s-3s (Default 1.5s)

*Disabled

0-100% (Default 0%）

0°-30°（Default 15°）

*CW

*Enabled

Programmable Item List of Platinum 60A V4 ESC. (“*” in the form below indicate factory defaults. )

1. Flight Mode Helicopter (Linear Throttle)Fixed-wing * Helicopter

(Elf Governor)

Helicopter

(Store Governor)

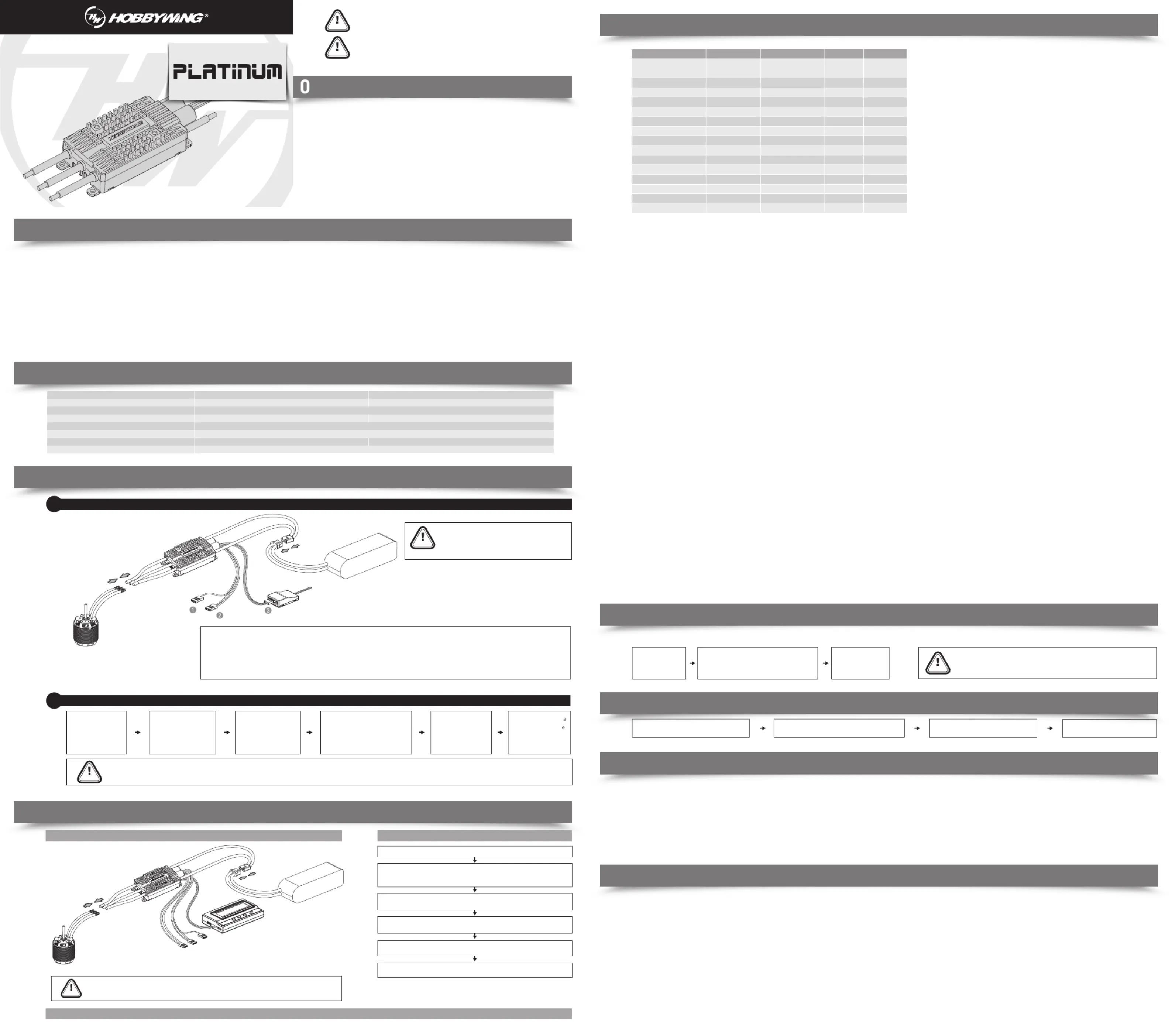

USER MANUAL

PLATINUM 120A V4 / 80A V4

Brushless Electronic Speed Controller

1. Flight Mode:

1.1 In “Fixed-wing” mode, the motor will start up when the throttle amount reaches 5% or

above. There is no soft start-up, the motor responds to the throttle increase rapidly.

1.2 In “Helicopter (Linear Throttle)” mode, the motor will start up when the throttle amount

reaches 5% and it will start up in a soft way with the throttle (from 0 to 100%) acceleration

time is fixed to 3.5 seconds . It will accelerate to the RPM corresponds to the specific throttle

amount at the fixed rate.

1.3 In “Helicopter (Elf Governor)” mode, the motor will start up when the throttle amount

reaches 40% or above. And it will complete the speed standardization and enter the

speed-governing operation in the preset start-up time (4~25s). In this mode, the motor will

standardize its speed every time it starts up. Due to different discharge rates/capabilities of

different batteries, the RPM you standardize each time may be a little different.

In consequence, at the same throttle amount, the RPM may be a bit different when using

different batteries, but this won’t affect the speed-governing effect.

1.4 In “Helicopter (Store Governor)” mode, the motor will start up when the throttle amount

reaches 40% or above. It will also start up in a very soft way. And it will also complete the

speed standardization and enter the speed-governing operation in the preset start-up time.

In this mode, the motor will only standardize its speed the first time when it starts up.

When performing RPM standardization for the first time, we recommend using a

fully-charged battery with good discharge capability. After the RPM standardization, change

another battery to fly your aircraft. At the same throttle amount, the RPM should be the

same as the RPM of the first flight. For consistent control feel, we recommend using this mode.

Turn on the

transmitter and move

the throttle stick to

the top position.

Connect a battery to

the ESC, the motor will

sound “ 123” to ♪

indicate the ESC is

powered on normally.

During the ESC/Radio calibration, please set the throttle curve to NORMAL and ensure the corresponding throttle amounts to the maximum throttle endpoint and the minimum throttle

endpoint on your transmitter are respectively 100% and 0%.

5 seconds later, the

motor will beep two

short beeps to indicate

the maximum throttle

endpoint is accepted.

Move the throttle stick to the

bottom position within 3 seconds

after you hear those two beeps,

the minimum throttle position

will be accepted 1 second later.

The Motor will beep

“Number” beeps to

indicate the number

of LiPo Cells you

have plugged in.

The motor will beep a

long beep to indicate

the calibration is

complete.

• Read through the manuals of all power devices and aircraft and ensure the power configuration is

rational before using this unit.

• Ensure all wires and connections are well insulated before connecting the ESC to related devices,

as short circuit will damage your ESC.

• Ensure all devices are well connected, in order to prevent poor connections that may cause your

aircraft to lose control or other unpredictable issues like damage to the device.

• Please use a soldering iron with the power of at least 60W to solder all input/output wires and

connectors.

• Never get the motor locked up during high-speed rotation, otherwise the ESC may get destroyed

and may also get your motor damaged. (Note: move the throttle stick to the bottom position or

disconnect the battery immediately if the motor really gets locked up.)

• Never use this unit in the extremely hot weather or continue to use it when it gets really hot.

Because high temperature will activate the ESC thermal protection or even damage your ESC.

• Always disconnect and remove batteries after use, as the ESC will continue to consume current if it`s

still connected to batteries. Long-time contact will cause batteries to completely discharge and result

in damage to batteries or/and ESC. This will not be covered under warranty.

• High performance microprocessor for excellent motor speed-governing and super soft start-up.

• Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.

• DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature.

• New switch-mode BEC with adjustable output voltage ranges from 5V to 8V and continuous/peak current of 10A/25A.

• BEC is separated from other circuits of the ESC, it will keep its normal output when the MOSFET board of the ESC is burnt.

• Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor) , Helicopter (Store Governor).

• New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller’s revs when the load changes dramatically.

• Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight.

• "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.

• Independent output port for RPM (that is: motor speed) signals.

• Separate programming port for ESC programming or parameter setting.

• WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (IOS or Android).

• Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported.

• Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection.

Model

Applications

Input Voltage

Cont./Peak Current (10s)

BEC Output

Throttle Signal/BEC Output/RPM Signal Transmission Wires

Size / Weight

Separate Programming Port

Platinum 80A V4

3-6S LiPo

Switch-mode, 5-8V Adjustable (Step: 0.1V), 10A/25A Cont./Peak

White Throttle Signal Wire/Red & Black BEC Output Wires/Yellow RPM Signal Transmission Wire

For connecting LCD program box/WIFI module or fan

450-500 Class Helicopters(Propeller: 380-470mm)

80A/100A

84.29x38.2x20.4mm / 96.5g

500-550 Class Helicopters(Propeller: 470-575mm)

120A/150A

84.29x38.2x20.4mm / 106.5g

Platinum 120A V4

Programming

Press the “OK” button to connect the program box to your ESC. “The current

firmware version” will show up after the program box is successfully

connected to your ESC.

Connect the LCD

program box and a

battery to your ESC

as shown above.

Press the “OK” button to connect the program

box to your ESC. “The current firmware

version” will show up after the program box is

successfully connected to your ESC.

Press the “R/P”

button to browse all

running information

relates to the ESC.

1. you can only check the standardized RPM in “Heli Store Governor” mode, the

record won’t disappear after you turn off the ESC.

2. The recorded revs are electric revs. If the electric RPM is R, the actual rev of the

main blades =R ÷ Motor Poles ÷ 2 ÷ Gear Ratio × Throttle Amount (%).

Press the “ITEM” button to browse programmable items, and press the

“VALUE” button to change parameter value(s).

After changing parameter value(s), press the “OK” button to save those new

values to your ESC.

Press the “ITEM” button to browse other programmable items or exit

the programming.

Disconnect the ESC and battery, unplug the programming cable from the

ESC and LCD program box.

Connect the LCD program box and a battery to your ESC as shown above.

The default throttle range of this ESC is from

1100µs to 1940µs, you need to re-calibrate the

throttle range when the first time you use this ESC

or after you change the transmitter.

① RPM Signal Wire(Yellow): plug it into the RMP input channel on the flybarless system. (This wire can be used for providing RMP signal input when using

external device for speed-governing.

② BEC Output Cable (Red/Brown): plug it into the battery channel or any unoccupied channel on the receiver. (For better BEC powering, we recommend

plugging this cable into the battery channel or any unoccupied channel on flybarless if it’s permitted.

③Throttle Signal Cable (White/Red/Black): plug it into the TH throttle on the receiver or the corresponding channel on the flybarless system like the RX B

channel on the VBAR system. About which channel you should plug it in, it depends on your receiver and flybarless system. The White wire is for transmitting

throttle signals, the Red & Black wires are the BEC output wire and ground wire.

AT T ENT I ON

After adjusting parameters, you need to power your ESC off and then on. Otherwise, those new

parameters won’t take effect.

AT T ENT ION

Program Your ESC with a WIFI Express: For detailed information, please refer to the user manual of WIFI Express.

The ESC will record the standardized RPM, minimum voltage, maximum current and maximum temperatures of the flight but won’t save these data, so you need to keep the ESC on if you want to check the

information of the flight.

Normal Start-up Process

Turn on the transmitter, and then move

the throttle stick to the bottom position.

After connected to a battery, the ESC will emit

“♪123” indicating it’s normally powered on.

The motor will emit several beeps to

indicate the number of LiPo cells.

The motor emits a long beep

indicating the ESC is ready to go.

Explanations for Warning Tones

1. Input voltage is abnormal:

The ESC will measure the input voltage the moment when it’s powered on. The motor will keep beeping “BB, BB, BB” (the interval between two BBs is 1 second) when the input voltage is beyond the normal range.

The warning tone won’t stop until the voltage turns normal.

2. Throttle signal loss protection is activated:

The motor will beep “B-, B-, B-” (the interval between two B-s is 2 seconds) when the ESC doesn’t detect any throttle signal.

3. Throttle stick is not at the bottom position:

The motor will beep “B-B-B-B-B-” when the throttle stick is not moved to the bottom position.

4. Throttle range is too narrow:

The motor will beep “B-B-B-B-B-” when the throttle range you set is too narrow (when designing this ESC, it requires that the entire throttle range you set cannot be less than 50% of the whole throttle range

available on the transmitter.) The warning tone indicates the throttle range you set is void and you need to set it again.

Explanations for Multiple Protections

1. Start-up Protection:

The ESC will monitor the motor speed during the start-up process. When the speed stops increasing or the speed increase is not stable, the ESC will take it as a start-up failure. At that time, if the throttle amount is

less than 15%, the ESC will automatically try to restart up; if it is larger than 15%, you need to move the throttle stick to back the bottom position and then restart up the ESC. (Possible causes of this problem: poor

connection/ disconnection between the ESC and motor wires, propellers are blocked, etc.)

2. ESC Thermal Protection:

The ESC will gradually reduce the output but won’t cut it off completely when the ESC temperature goes above 110 . For ensuring the motor can still get some power and won’t cause crashes, so the maximum 

reduction is about 50% of the full power. The ESC will gradually resume its maximum power after the temperature lowers down. In addition, the ESC temperature cannot exceed 70 when it’s powered on. Otherwise, ℃

it cannot be started up. (Here we are describing the ESC’s reaction in soft cutoff mode, while if in hard cutoff mode; it will immediately cut off the power.)

3. Capacitor Thermal Protection:

The ESC will activate this protection when the operating temperature of capacitors goes over 130 . It protects capacitors in the same way as the ESC thermal protection does to the ESC .

4. Throttle Signal Loss Protection:

When the ESC detects loss of signal for over 0.25 second, it will cut off the output immediately to avoid an even greater loss which may be caused by the continuous high-speed rotation of propellers or rotor blades.

The ESC will resume the corresponding output after normal signals are received.

5. Overload Protection:

The ESC will cut off the power/output or automatically restart itself when the load suddenly increases to a very high value. (Possible cause to sudden load increase is that propellers are blocked.)

6. Over-current Protection：

The ESC will cut off the power when the current gets close to the short circuit current (of 300A). This protection may be activated by the burnt motor or some others.

Program Your ESC with a Multifunction LCD Program Box

About RPM Standardization & Others

I. The motor will enter the soft start-up when user switches the throttle amount from 0 to 40% or above (50% throttle is recommended). The pitch of main blades should be 0 degree during the soft start-up process,

the RPM standardization completes when the soft start-up ends, and the ESC makes the motor enter the speed-governing state. In “Helicopter (Store Governor)” mode, if user wants to re-standardize the speed, p1-he

needs to set the flight mode to “Helicopter (Elf Governor)” and save this mode first, and then reset the flight mode back to “Helicopter (Store Governor)”, then the ESC will re-standardize the motor speed when

the motor rotates for the first time after the ESC is powered off and then on again.

II. For ensuring the speed-governing effect, we recommend setting the throttle amount to 85% or below in both speed-governing modes (Helicopter (Store Governor) & Helicopter (Elf Governor)), so there will be

sufficient compensating room to maintain the consistency of the RPM. We recommend replacing the motor or adjusting the gear ratio if the expected RPM still cannot be reached when the throttle amount exceeds

85%. (Note: You need to re-standardize the RPM after replacing the motor, blades, body frame or adjusting the gear ratio.)

III. In “Helicopter (Store Governor)” mode, if you fly your aircraft with another pack that has poor discharge capability after the RPM standardization (with a pack which has good discharge capability), the pack has

poor discharge capability will get damaged.

IV. In “Helicopter (Store Governor)” mode, different battery packs can bring the same stable RPM only if they have the same cell count. This won’t change even when you change the battery pack. However, battery

packs with different cell count don’t have the same effect. For instance, in “Helicopter (Store Governor)” mode, you can not use a 4S to calibrate the motor RPM and then use a 6S to drive the motor, hoping it can

run at the same RPM.

V. User can decide the control feel via adjusting Governor Parameter P/I. In “Helicopter (Store Governor) or Helicopter (Elf Governor)” mode, connect your ESC to a smart phone or PC, then you can check the throttle

vs speed chart.

2. LiPo Cells:

The ESC will automatically calculate the number of LiPo cells you have plugged in as per the “3.7V/Cell” rule if “Auto Calc.” is selected. Or user can set this item manually.

3. Voltage Cutoff Type:

The ESC will gradually reduce the output to 50% of the full power in 3 seconds after the voltage cutoff protection is activated, if soft mode is selected. . It will immediately cut off all the output when hard mode is selected.

4. Cutoff Voltage:

2.8V-3.8V (custom), 3.0V (default).

5. BEC Voltage:

5-8V (adjustable), 0.1V (step), 6V (default).

6. Start-up Time:

4-25s (adjustable), 1s (step), 15s (default). (Note: It only functions in Helicopter (Store Governor) and Helicopter (Elf Governor))

7. Governor Parameter P:

Control the ESC maintaining the stability of the current motor speed.

8. Governor Parameter I:

Control the dynamic response. To be specific, control the supplement extent when the actual motor speed is below expectation. If you choose a very big value, then the supplement may be too much. If select a very

small value, then the supplement may not sufficient.

9. Auto Restart Time:

the ESC will cut off its output when the throttle amount is between 25% and 40%. If you increase the throttle amount to above 40% within preset time period (0-90s), the motor will rapidly start up and accelerate

to the speed (in the programmed Restart Acceleration Time) corresponds to the specific throttle amount, complete the shutdown and restart up . If you move the throttle stick to over 40% beyond the preset time

period, the ESC will enter the soft start-up process. (Note: This function won’t effect unless the throttle amount is over 25% and it only effects in “Helicopter (Store Governor) and Helicopter (Elf Governor)” mode.)

10. Restart Acceleration Time:

1-3s (adjustable), 0.5s (step), 1.5s (default). This item controls the time the motor will cost to restart and accelerate to the full speed. (This function only effects in “Helicopter Governor Elf/Store” mode)

11. Brake Type:

11.1 when the throttle range on the transmitter is between 20% and 100%, the corresponding ESC throttle output is between 0% and 100%.When the throttle range on the transmitter is Proportional Brake:

between 20% and 0%, the corresponding brake force is between 0 and 100%.

11.2 after selecting this option, the RPM signal wire will turn into a reverse signal wire (the signal range is in line with the throttle range). After setting a channel on the transmitter, when the reverse signal Reverse:

length is above 20% signal length, the Reverse mode will be activated. The reverse signal length must be below 20% signal length when the ESC is powered on for the first time. When the reverse signal length

is below 20% signal length, 0-100% throttle corresponds to “CW”; when the reverse signal length is above 20% signal length, the motor will stop spinning CW (and then spin CCW); at this time, 0-100%

throttle corresponds to “CCW”. Any signal loss will activate the throttle signal loss protection, no matter it happens to the RPM signal wire or the throttle signal cable during the flight.

12. Brake Force:

0-100% (adjustable), 1% (step), 0 (default). (Note: this function only effects in “Normal Brake” mode.)

13. Timing:

0-30° (adjustable), 1° (step), 15° (default).

14. Motor Rotation:

CW/CCW. User can adjust this item via a multifunction LCD program box.

15. DEO (Freewheel):

User can decide this function “Enabled” or “Disabled” in “Fixed Wing” mode or in “Helicopter (Linear Throttle)” mode. This item has been preset to “Enabled” and cannot be adjusted in “Helicopter (Store
