CA UT IONSAT T ENT ION

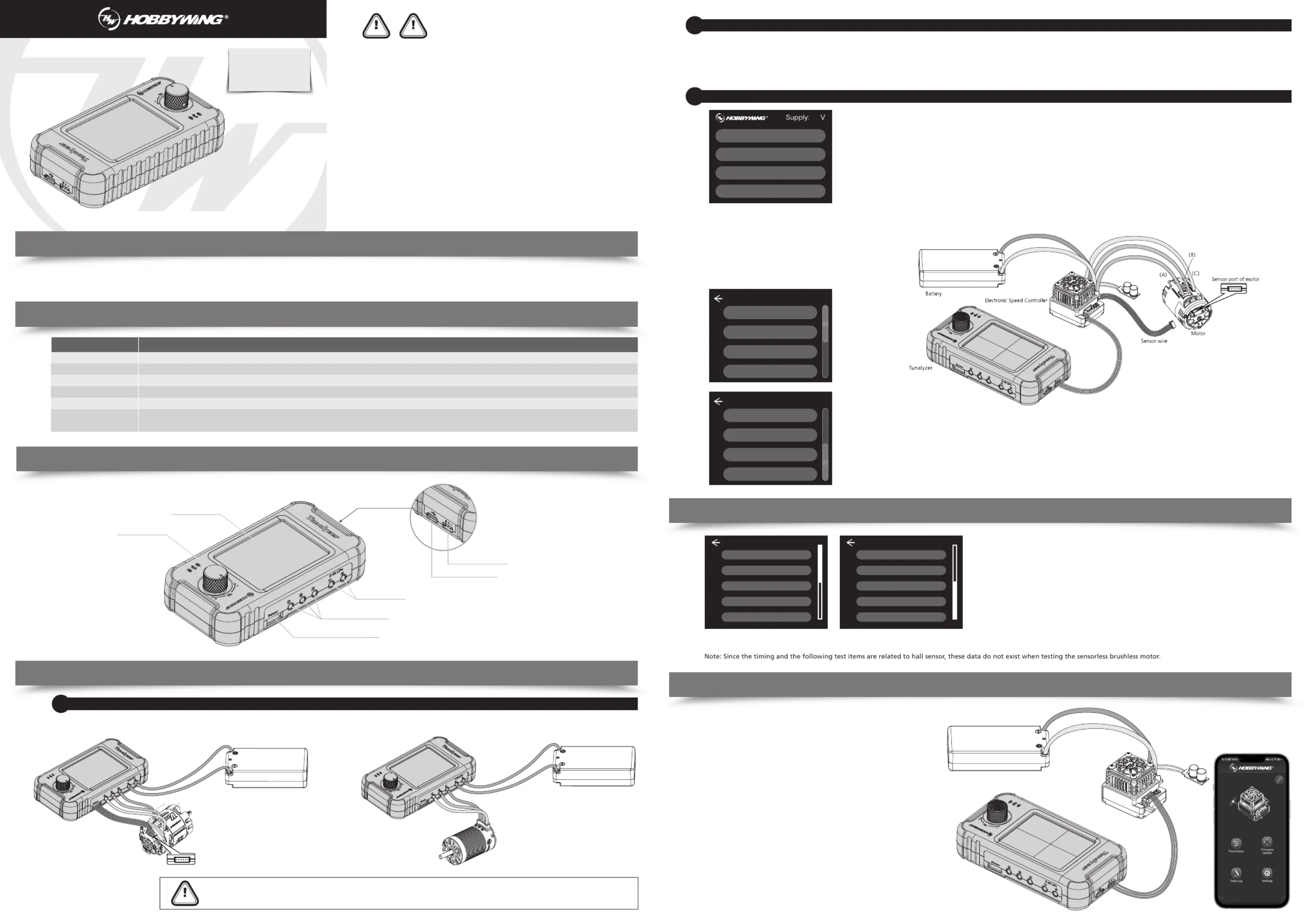

USER MANUAL

Tunalyzer

Thank you for purchasing this HOBBYWING product! Please

read the following statement ca refully before use and, once

used, it is considered to be an acceptance of all the contents.

Please strictly observe and adhere to the manual installation

with this product. Unauthorized modification may result in

personal injury and product damage. We reserve the rights to

update the design and performance of the Product without

notice. Different languages are available. Chinese language

will be available to the mainland of China while English

language will be available to the rest of the world.

05 Te t tem xp anat ons I El i

Test Voltage: Refers to the set test voltage. See the menu function introduction above for details.

Current: The running current under the measured conditions.

KV: The ratio of motor rpm to voltage at the corresponding throttle output.

End-bell Timing: Refers to the end-bell timing of the motor, and the data displayed at A B C position is the

actual timing corresponding to each phase. Smaller difference between these values makes

a good sensor. This is not only related to the sensor elements, but also related to the

alignment of the sensor installed on the PCB inside the motor and the distance to the rotor.

End-bell Deviation: Refers to the difference of the measured three-phase timing of A, B and C, indicates the

deviation and alignment of the sensor elements. Smaller this value means better sensor status.

Rotor Asymmetry: In an ideal state, the N pole and S pole of the magnet account for half and the area is exactly

the same, but this is not the case due to manufacturing tolerance. The rotor asymmetry here

represents the deviation from an ideal magnet. Smaller this value means better rotor/magnet.

Hall Signal Deviation: Refers to the deviation of A B C three phase Hall signal. Smaller this value means better signal consistency.

Motor Temperature: The current temperature of motor.

06 Bl F iuetooth un tcon

The built-in Bluetooth module of the Tunalyzer supports setting and updating the

esc through the mobile phone app. This function will be available for the esc that

supports the use of OTA Bluetooth module.

The specific operation methods are as follows:

1. Download the HW link app from the Hobbywing official website or the

app store and install it on your mobile phone.

2. Wiring and operation

Connect the programming port of the esc to the "- + s" port on the left side

of theTunalyzer, then connect the esc with the battery, and turn on the esc.

Then open the HW link app, click the "connection" sign in the upper right

corner of the app home page, a nearby Bluetooth device will pop up, select

the Bluetooth name "HW-BLE*****", enter the factory default password

"888888", click OK to establish a Bluetooth connection with the Tunalyzer,

and then you can set or update the esc.

Note: As for the programming port of the esc (the above wiring diagram is based

on XERUN XR10 Pro G2S as an example), the port may be different due to

the use of different escs, for example, the independent programming port,

fan port and throttle cable are used. For details, please refer to the esc

manual to find the correct programming port, otherwise, this function

cannot be used normally.

1. Connect the phase cables A B C and sensor cable to the motor.

2. Connect the battery(2-4S Lipo).

3. Click”Auto Motor Test”.

After automatic motor test, all test data will be displayed. Sliding the screen upward will display the data item on the next page, and sliding the screen downward will display the data item on the previous page; Click the

return icon in the upper left corner to return to the home page.

Note: When you power on for the first time and click "Auto Motor Test", the motor pole setting will automatically pop up,when you click again, it will not. Please be sure to set the correct motor pole.

Qu k tarticS

02 Spe f at onci icis

01 Introdu t onci

04 U er Gu desi

03 D agrami

1) Sensored Brushless Motor 2) Sensorless Brushless Motor

C ionne tcon

1. Do not connect the battery to the A B C motor interface by mistake, otherwise the device will be damaged.

2. When testing the sensored brushless motor, the A, B and C wiring must be connected in strict accordance with the sequence of A-A, B-B and C-C.

3. During the test, ensure that the motor A, B and C ends will not touch each other and cause short circuit, so as to avoid damaging the device.

This tool is used to test the brushless DC motor and its internal components. It can measure the Kv value, rpm, current, end-bell timing and sensor elements of the brushless motor. These parameters can be

displayed on the LCD in real time, so that you can have an intuitive and full understanding of the motor used. In addition, the built-in Bluetooth of the Tunalyzer can establish communication with the esc

through the mobile phone app to realize the parameter setting and firmware updating of the esc.

Throttle Knob

Touch Screen

Sensor Connector

ABC Motor Connector

Input/Battery Connector

USB Port

Throttle/Programming Port

Motor

Battery

Tunalyzer

Sensor port of motor

(A) (B) (C)

Motor

Battery

Tunalyzer

Test Voltage:

Current:

KV:

End-bell Timing:

A: 43.2° B: 41.7° C: 42.9°

7.40V

4.12A

3970

42.6°

End-bell Deviation:

Rotor Asymmetry:

Hall Signal Deviation:

Motor Temperature:

0.8°

1.3°

1.8°

030℃ / 086°F

20221019

Model

Input Voltage

Motor Type

Size

Weight

Display

6-16.8V (2-4S Lipo)

Sensored & Sensorless Brushless Motor

122.8 x 64.6 x 39mm (with knob height)

144g

LCD color touch screen

1) Measure motor Current / Kv value/Rpm, End-bell timing / Deviation, Rotor asymmetry, Hall signal deviation and motor temperature.

2) Set and upgrade the esc (which can support the OTA Bluetooth module).

Tunalyzer

Function

1. Auto Motor Test

This item is an automatic test function. After clicking this option, the Tunalyzer will automatically drive the motor to rotate, after a few seconds, the test is completed and

the measured data will be displayed.

2. Manual Motor Test

This item is a manual test function. After clicking this option, you need to manually control the motor rotation through the throttle knob on the right of Tunalyzer. During

the manual operation, the motor data will be displayed on the screen in real time.

3. Throttle Output

This function uses the Tunalyzer as a throttle signal generator, it can be used to control esc, servo and other equipment requiring PWM signal input. and the output port is

the port marked with "-+S"on the left side of the Tunalyzer. When the throttle cable of esc is connected to the "- + s" port of the Tunalyzer, the esc/motor can be

controlled through the throttle knob on the Tunalyzer, which acts as the throttle trigger of the transmitter, the wiring diagram is as follows. The throttle signal pulse width

range is 1050us to 1195us, the maximum throttle pulse width is 1195us in the forward direction (the "+" direction on the knob), 1050us in the reverse direction (the "-"

direction on the knob), and 1500us in the neutral of the throttle.

The voltage range supported by the throttle output port is 6-8.4V. Usually, the built-in BEC of the esc can supply power. If the esc has no built-in BEC, it needs to supply

additional power through the "Y" cable.

Note: 1. When used as the throttle output function, the input / battery port of the Tunalyzer cannot be connected to a battery.

When connecting the esc to the throttle output port for the first time, please calibrate the throttle range to ensure safe running.2.

Menu un t onFci

4. Settings

Chinese and English are available. Used to adjust the brightness of the display screen.Language: Brightness:

Poles: Used to set the number of motor poles. 2-60 poles are adjustable. This setting is very important for testing the motor, it must be set according to the actual motor

rpm, Kv, etc. will be inaccurate.pole specification, otherwise the measured

Test Voltage: This voltage is a stable test voltage obtained after processing on the basis of the input voltage, it can be selected in 7.4V and 3.4V, the default setting is 7.4V.

This function is to ensure the consistency of test voltage and avoid different conditions due to changes in battery voltage. If the input voltage is lower than a

certain value, the corresponding test voltage will also drop.

Note: If the motor's KV 8000(or 4.5T), please set 3.4V test voltage, otherwise please set 7.4V test voltage. Improper test voltage may lead to abnormal ＞＜

test (trigger protection function) or inaccurate data.

Reverse Rotation: Used to enable or disable the motor reverse rotation function in the manual motor test mode. Used to turn the operating sound on or off. Sound On/Off:

Factory Reset: Device Information: Used to restore factory settings. You can view the hardware version/software version/Bluetooth version of the device.

Battery

Electronic Speed

Controller

Tunalyzer

AT T ENT ION

Auto Motor Test

Manual Motor Test

Throttle Output

Settings

Language

Brightness

Poles
