1390324 Rev 08/21 D

VDV500-705

Tone & Probe Test & Trace Kit Instructions

Instrucciones del kit de prueba y rastreo Tone & Probe

Instructions pour l’ensemble de générateur et de sonde

Tone& Probe

T7 T6

T11T10

T12

T9a

T9b

TONER

GENERADOR DE TONO

GÉNÉRATEUR DE TONALITÉ

PROBE

SONDA

SONDE DE TONALITÉ

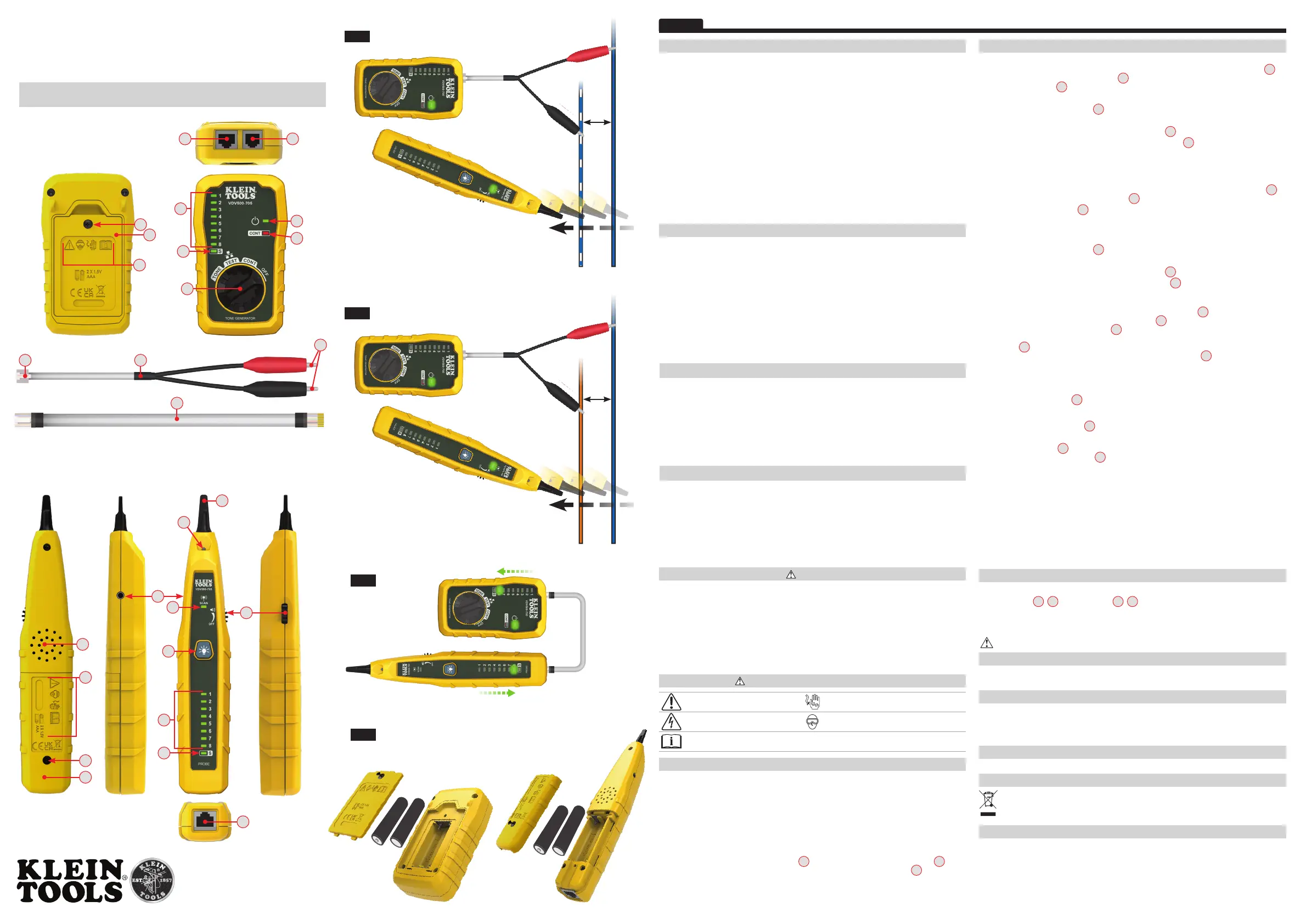

FEATURE DETAILS / DETALLES DE LAS CARACTERÍSTICAS /

CARACTÉRISTIQUES DÉTAILLÉES

P11

P10

P12

P13

P3 P4

ENGLISH

(51 mm)

FIG. 1

(51 mm)

FIG. 2

+ AAA –

– AAA +

+ AAA –

– AAA +

FIG. 3

FIG. 4

FEATURE DETAILS - TONER

Power Indicator

RJ45 Cable

"CONT" (Continuity) Indicator

RJ12-To-Alligator Clip Cable

Wire Map / Pinout Indicators

T9a

RJ12 Plug

Shield Indicator

T9b

Alligator Clips

Function Selector Switch

T10

Battery Cover

RJ12 Port

T11

Battery Cover Screw

RJ45 Port

T12

Warning Symbols

FEATURE DETAILS - PROBE

Non-Metallic Conductive Tip

Headphone Jack

Worklight

RJ45 Port

Power Indicator

P10

Battery Cover

Power/Volume Control Dial

P11

Battery Cover Screw

Worklight On/Off Button

P12

Warning Symbols

Wire Map / Pinout Indicators

P13

Speaker

Shield Indicator

GENERAL SPECIFICATIONS - TONER

The Klein Tools VDV500-705T Toner is a tone generator for wire identification, wire tracing and wire

pair identification. It features a tone with a strong power output for tracing wires.

• Operating Altitude: 6562 ft. (2000 m) maximum

• Relative Humidity: 10% – 90% non-condensing

• Operating Temp: 14° to 140°F (-10° to 60°C)

• Storage Temp: -4° to 122°F (-20° to 50°C)

• Dimensions: 2.51" x 4.33" x 1.24" (64 x 110 x 31 mm)

• Weight: 4.0 oz. (113g) including batteries

• Battery Type: 2 x 1.5V AAA

• Battery Life: Active: Standby/Storage:60 hours 3 years

• Auto-Power Off: After 60 minutes of inactivity

• Tone Power: 8dBm

• Continuity Indication: Less than 10kΩ

• Voltage Protection: Test Mode: Tone Mode:60V

1000 Hz – 2000 Hz

NOTE:

The maximum voltage across Alligator Clips of the Toner is 60 volts in Test mode, and 20

volts in Continuity mode. Connecting the Toner to live mains AC power may damage it and pose a

safety hazard for the user.

Specifications subject to change.

GENERAL SPECIFICATIONS - PROBE

The Klein Tools VDV500-705P Probe is a tone tracer, featuring an inductive probe, a speaker for an

audible output, a headphone jack for use in noisy environments, and a worklight for use in dark spaces.

• Operating Altitude: 6562 ft. (2000 m) maximum

• Relative Humidity: 10% – 90% non-condensing

• Operating Temp: 14° to 140°F (-10° to 60°C)

• Storage Temp: -4° to 140°F (-20° to 60°C)

• Dimensions: 1.46" x 7.98" x 1.07" (37 x 203 x 27 mm)

• Weight: 3.5 oz. (99 g) including batteries

• Maximum Volume: 90 dB

• Battery Type: 2 x 1.5V AAA Alkaline

• Battery Life: Active: Standby/Storage:18 hours 3 years

• Auto-Power Off: After 10 minutes of inactivity

Specifications subject to change.

WARNINGS

To ensure safe operations and service of the instruments, follow these instructions. Failure to observe

these warnings can result in re, electric shock, severe injury or death.

• The Toner and Probe are designed for use on cabling systems for testing when energized.NOT

• DO NOT use instruments if they are wet, as it could pose a shock hazard.

• DO NOT use instruments if they are damaged in any way.

• Turn off instruments and disconnect Alligator Clips and RJ11/RJ45 connectors before

attempting to replace batteries.

• The battery door must be in place and secure before you operate the instrument.

• DO NOT open the case, other than the battery compartment.

WARNING SYMBOLS ON INSTRUMENTS

Warning or caution Do not use on live electrical circuits

Warning – Risk of electric shock Wear approved eye protection

Read instructions before using

OPERATING INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE OPERATING AND RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

This tone and probe test kit traces non-energized wires. The toner transmits on non-energized wires

using the 3rd and 4th contacts of the RJ12 terminal jack or the 4th and 5th contacts of the RJ45

terminal jack. Included with this kit are an RJ12-to-alligator clips test wire to use on unterminated

wires or coaxial cable, as well as an RJ45 terminated jumper. These are to be used as an interface

with the cable to be traced, if required. The probe is used to locate the toned wire at the far end of

the cable. See below for specific details.

CONTINUITY TEST

The Toner transmits frequencies on non-energized wires only. Connect the cable to be tested to the Toner,

or, if necessary, connect the Alligator Clip Cable

to the Toner, then attach the Alligator Clips

T9b

to the

wires to be tested. If the resistance of the circuit is less than 10kΩ, the "CONT" Indicator

will illuminate

red and no toning can occur. If there is continuity on the cables to be tested, toning cannot be performed.

OPERATING INSTRUCTIONS

TRACING PAIRED WIRES (FIG. 1)

1. Connect the cable to be tested to the Toner, or, if necessary, connect the Alligator Clip Cable

the Toner, then attach the

red Alligator Clip

T9b

to one of the wires in the pair to be traced. Connect

the black Alligator Clip

T9b

to the other wire in the pair to be traced.

2. Perform Continuity Test as described previously to verify the wire path is open for toning.

3. Turn the Function Selector Switch

to "TONE" to initiate toning

4. At the far end of the wire pair to be traced, spread the wires apart at least 2" (51 mm), if possible.

5. Turn on the Probe by rotating the Power/Volume Control Dial

counterclockwise, to desired volume.

6. Use the Probe to scan the cable’s wire pairs. Move the Probe's tip

slowly across the wires. The

Probe’s volume will increase as it approaches the toned pair. When the Probe’s volume is high over

the first wire, low in the middle (between) the two wires, and high over the second wire, you have

located the pair of wires you are tracing.

RJ45 TERMINATED DATA CABLE WIRE MAP TESTING (FIG. 3)

1. Insert one end of the data cable to be tested into the Toner's RJ45 port

2. Insert opposite end of cable into the Probe's

RJ45 port

3. Turn the Toner's

Function Selector Switch

to "TEST".

4. A wire pin-to-pin map will be displayed on both the Toner and the Probe. The Toner's Wire Map Pinout

Indicators

will slowly blink in order, 1 through 8, to indicate which pin on the Toner end of the cable

is being mapped. Simultaneously, The Probe's Wire Map Pinout Indicators

will illuminate to indicate

which pin on the Probe end of the cable is connected to the actively indicated pinout on the Toner end

(for example, if pin 3 on the Toner end of the cable is connected to pin 6 on the Probe end of the cable,

when the Toner's #3 Pinout Indicator illuminates, the Probe's #6 Pinout Indicator will illuminate).

5. If the cable being mapped is terminated in T568A, T568B, or Straight-Through wiring, the Probe's

Wire Map Pinout Indicators

will illuminate

1 through 8, in the order of contact pin termination,

in unison with the Toner's Indicators.

6. The test will be repeated until one (or both) end(s) of the cable is/are disconnected, or until the

Toner's

Function Selector Switch

is rotated out of the "TEST" setting.

USING THE PROBE'S WORKLIGHT

The Probe has a worklight

to aid in illuminating dark or low-light work areas. Press the Worklight

On/Off button for less than one second

to turn the light on and off.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street Lincolnshire, IL 60069 1-800-553-4676

customerservice@kleintools.com www.kleintools.com

CLEANING

Be sure instrument is turned off and wipe with a clean, dry lint-free cloth.

Do not use

abrasive cleaners or solvents.

STORAGE

Remove the batteries when

instrument

is not in use for a prolonged period of time. Do not expose

to high temperatures or humidity. After a period of storage in extreme conditions exceeding the

limits mentioned in the GENERAL SPECIFICATIONS section, allow the equipment to return to normal

operating conditions before using.

WARRANTY

www.kleintools.com/warranty

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash. Items must be properly disposed of in

accordance with local regulations. Please see www.epa.gov/recycle for additional information.

BATTERY REPLACEMENT (FIG. 4)

1. Turn off instrument(s) before attempting to replace batteries.

2. Loosen screw

T11

P11

on battery cover

T10

P10

3. Remove and properly dispose of two 1.5V AAA batteries.

4. Install new batteries (note proper polarity).

5. Replace battery cover and fasten securely with screw.

To avoid risk of electric shock, do not operate while battery door is removed.

TRACING NON-PAIRED WIRES (FIG. 2)

1. Connect the cable to be tested to the Toner, or, if necessary, connect the Alligator Clip Cable

the Toner, then attach the

the red Alligator Clip

T9b

to the wires to be traced.

2. Connect the black Alligator Clip

T9b

to another wire in the cable, but preferably not in the same pair

(connect to ground, if available). When tracing a shielded cable, connect the red Alligator Clip to the outer

shield, and the black Alligator Clip to the center conductor or ground.

3. Perform Continuity Test as described previously to verify the wire path is open for toning.

4. Turn the Function Selector Switch

to "TONE" to initiate toning

5. At the far end of the cable, spread the wires apart at least 2" (51 mm), if possible.

6. Turn on the Probe by rotating the Power/Volume Control Dial

counterclockwise, to desired volume.

7. Use the Probe to scan the cable’s wires. Move the Probe's tip

slowly across the wires. The

Probe’s volume will increase as it approaches the toned wire

APPLICATION HINTS

• When tracing wires terminated to a terminal block such as a “66 block”, attaching both generator leads

to the cable or pair tends to contain the signal within the cable pair. This causes cancellation of the

radiated signal. The tracer must nearly touch the end of the cable to detect the signal, which is helpful

when the wires are close together or when terminated.

• Connecting one generator lead to a wire is normally sufficient to trace the cable. The more wires in a

cable connected in parallel to the generator, the stronger the radiated signal.

• When necessary to maximize radiated signal, connect one lead of the generator to the wire or cable

and the other end to ground, such as electric box, metallic water pipe or ground rod.

• Connect the generator to the ungrounded shield of a coax cable for the strongest signal. If the generator

is connected to the center lead the shield will do its job and shield the signal from being radiated.
