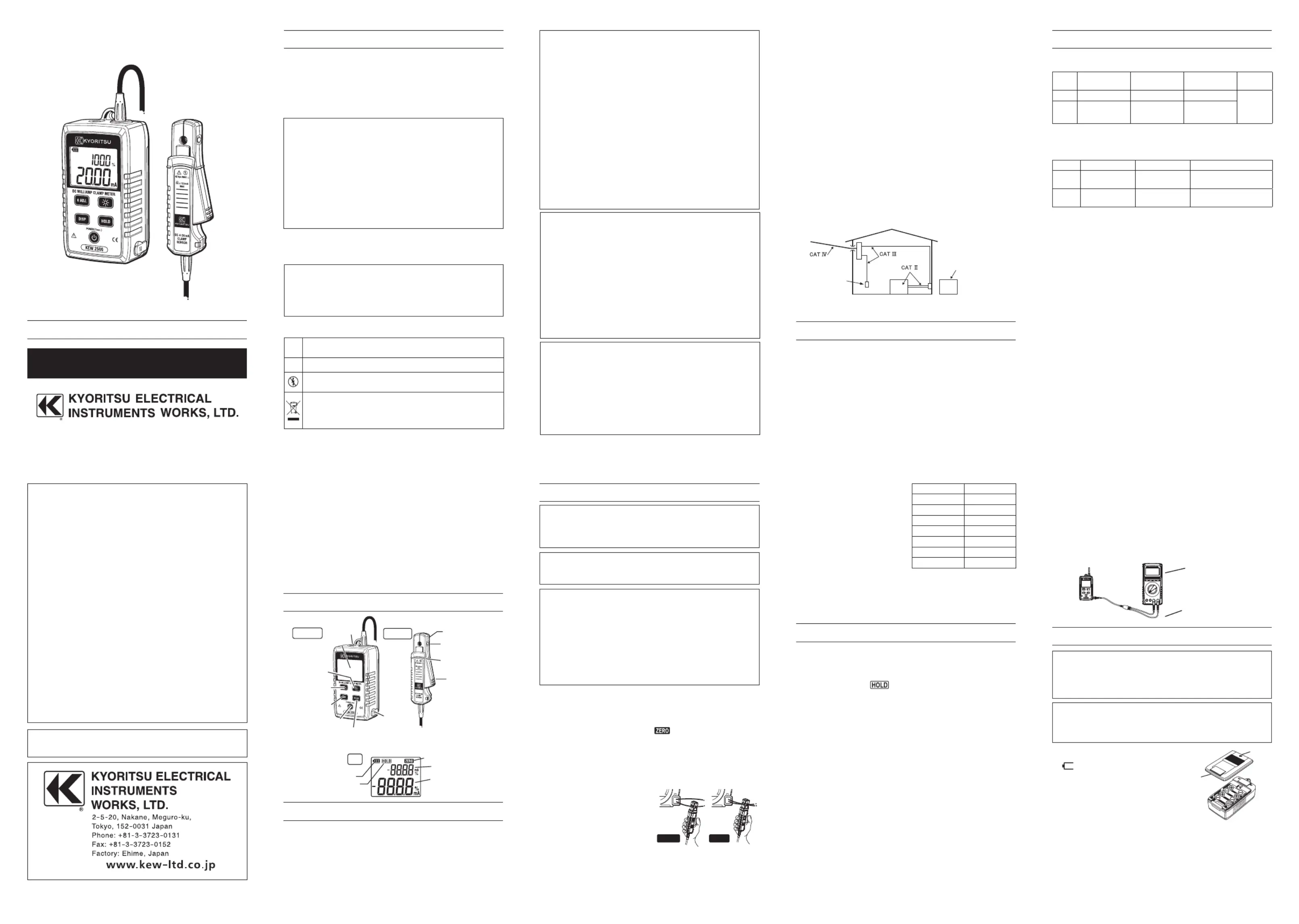

1 Safety warnings
This instrument has been designed, manufactured and tested
according to IEC 61010: Safety requirements for Electronic
measuring apparatus, and delivered in the best condition after
passing quality control tests. This instruction manual contains
warnings and safety rules which have to be observed by the
user to ensure safe operation of the instrument and to maintain
it in safe condition. Therefore, read through these operating
instructions before using the instrument.
# WARNING
Read through and understand the instructions contained in
this manual before using the instrument.
Keep the manual at hand to enable quick reference
whenever necessary.
The instrument is to be used only in its intended applications.
Understand and follow all the safety instructions contained in
the manual.
It is essential that the above instructions are adhered to. Failure
to follow the above instructions may cause injury, instrument
damage and/or damage to equipment under test. Kyoritsu is by
no means liable for any damage resulting from the instrument in
contradiction to these cautionary notes.
The symbol # indicated on the instrument, means that
the user must refer to the related parts in the manual for
safe operation of the instrument. It is essential to read the
instructions wherever the symbol appears in the manual.
# DANGER : is reserved for conditions and actions that are
likely to cause serious or fatal injury.
# WARNING : is reserved for conditions and actions that can
cause serious or fatal injury.
# CAUTION : is reserved for conditions and actions that can
cause injury or instrument damage.
Please refer to following explanation of the symbols used on the
instrument and in this manual.
#User must refer to the explanations in the instruction
manual.
Instrument with double or reinforced insulation
Application around hazardous live conductors is NOT
permitted.
Crossed-out wheel bin symbol (according to WEEE
Directive: 2002/96/EC) indicating that this electrical product
may not be treated as household waste, but that it must be
collected and treated separately.
Instruction Manual # DANGER
Never make measurements on a circuit in which earth
potentials of 42Vpk or higher exist.
Do not attempt to make measurements in the presence of
flammable gasses. Otherwise, the use of the instrument may
cause sparking, which can lead to an explosion.
Never attempt to use the instrument if its surface or your
hand is wet.
Do not exceed the maximum allowable input of any
measuring range.
Never open the Battery compartment cover during a
measurement.
Never attempt to make any measurements if the clamp
sensor and/or the instrument has any structural abnormality,
such as a crack, or if the cover is not securely attached.
Do not measure AC currents.
The instrument should be used only in its intended
applications or conditions. Otherwise, safety functions
equipped with the instrument do not work, and instrument
damage or serious personal injury may be caused.
# WARNING
Never attempt to make any measurements if any abnormal
conditions, such as a broken cover or exposed metal parts
are present on the instrument and clamp sensor.
Do not install substitute parts or make any modifications to
the instrument. Return the instrument to your local
KYORITSU distributor for repair or re-calibration in case of
suspected faulty operation.
Do not try to replace the batteries if the surface of the
instrument is wet.
Ensure that the Clamp sensor is disconnected from the
object under test, and that the instrument is powered off
when opening the Battery compartment cover for battery
replacement.
# CAUTION
Do not expose the instrument to direct sunlight, high
temperature, humidity or dew.
This instrument is not water/ dustproof. Do not use it in a
dusty environment or where it will get wet.
Always power off the instrument after use. Remove the
batteries if the instrument is to be stored and will not be in
use for a long period.
Use a damp cloth with neutral detergent or water for cleaning
the instrument. Do not use abrasives or solvents.
Measurement Category
To ensure safe operation of measuring instruments, IEC 61010
establishes safety standards for various electrical environ-
ments, categorized as O to CAT IV, and called measurement
categories. Higher-numbered categories correspond to electrical
environments with greater momentary energy, so a measuring
instrument designed for CAT III environments can endure
greater momentary energy than one designed for CAT II.
O : Circuits which are not directly connected to the mains
power supply.
CAT II : Electrical circuits of equipment connected to an AC
electrical outlet by a power cord.
CAT III : Primary electrical circuits of the equipment connected
directly to the distribution panel, and feeders from the
distribution panel to outlets.
CAT IV : The circuit from the service drop to the service
entrance, and to the power meter and primary
overcurrent protection device (distribution panel).
2. Feature
Instrumentation signal (DC4–20mA) measurement
DC current (0-100mA) measurement without breaking the
electrical circuit.
LED light for illuminating the measurement spot
Auto-power-off function
Percentage span
Analog output function to output the measured results to the
recorder or digital multi-meter.
Data hold function
3 Specification
Measuring range and accuracy (23ºC±5ºC, RH 75% or less)
(1) DC current (auto-range)
Range Display range Guaranteed
accuracy Accuracy Condition
20mA 0.00 to ±21.49mA 0.00 to ±21.49mA ±0.2%rdg±5dgt After Zero-
Adjustment
described at
clause 6 (1)
100mA ±21.0 to ±126.0mA ±21.0 to ±120.0mA ±1.0%rdg±5dgt
(2) Analog output function
To output DC voltage (10mV/mA) corresponding to the
reading.
Range Display range Output voltage Accuracy
20mA 0.00 to ±21.49mA 0.0 to ±214.9mV Accuracy specified at clause 3
(1) plus (±0.5mV)
100mA ±21.0 to ±126.0mA ±210 to ±1260mV Accuracy specified at clause 3
(1) plus (±3mV)
*
1300mV is output when the display showsOL. (-1300mV for-OL.)
See clause 6 for explanations on OL display.
* Output impedance : approx. 5kΩ
Applicable
standards
IEC61010-1
Measurement CAT O (Other), Pollution degree 2
IEC61010-2-032
IEC61326 (EMC)
IEC60529 IP40
Environmental
Standard
EU RoHS Directive compliant
Display Liquid crystal display
(see also 4. Instrument layout)
Refresh rate approx. once/ 0.6 second
Location for use In-door use, altitude 2000m or less
Operating tempera-
ture & humidity
-10 to +50 RH85 or less (no condensation) ℃ %
Storage tempera-
ture & humidity
-20 to +60 RH85 or less (no condensation)℃ %
Power source size AA battery x 4 pcs
(The use of alkaline LR6 is recommended.)
Battery life approx. 60 hours continuous (with Backlight
and LED light OFF)
Auto-power-off Power off function operates in 10 min. after
the last switch operation. This function is
disabled when a cord is being connected to
the OUTPUT terminal.
Temperature
coefficients
Add 0.1 x specified accuracy/ ºC
(above 28ºC or below 18ºC)
Incoming wire
:Device which is
not directly
connected to the
mains power supply
Socket
Interior wiring
Withstand voltage
AC2210V for 5 sec
(between electrical circuit and enclosure)
Insulation resistance
100M or more/ 1000V Ω
(between electrical circuit and enclosure)
Rated voltage 42 Vpk (circuit – ground)
● Ф Conductor size max. 6mm
Dimension 111(L) x 61(W) x 40(D)mm
Weight approx. 290g (including batteries)
Accessory Soft case MODEL9096 x 1 pce
Size AA Alkaline battery LR6 x 4 pcs
Instruction manual (Japanese/ English) x 1 pce
Optional accessory
Analog output cord MODEL7256
4 Instrument layout
5 Getting started
(1) Power on the instrument, and then check smooth opening and
closing of clamp sensor.
(2) Check the remaining battery level before making a measure-
ment. Press the Power button and get the instrument started.
When the battery empty indicator appears in the LCD, please
replace the batteries with new ones according to 8. Battery
replacement in this manual.
(3) Ensure that the Data hold function is not in active status.
6 Operating instructions
# WARNING
Do not clamp onto the un-insulated conductor.
Always use the dedicated analog output cord MODEL 7256
when utilizing the analog output function.
# DANGER
Keep your fingers and hands behind the barrier during a
measurement.
# CAUTION
To avoid false reading, check that the Clamp sensor is clean
before starting to use the instrument.
Bring the Clamp sensor close to the conductor under test
and zero adjust the display in order to minimize the influence
of electromagnetic waves.
Take sufficient care to not to apply shock, vibration or
excessive force when opening and closing the clamp sensor.
Otherwise, accurate measured results may not be obtained.
Please open and close the sensor lightly.
(1) Zero Adjustment
Perform zero adjustment prior to starting a measurement. With
the transformer jaws closed and without clamping them onto the
conductor, press the Zero ADJ. button.
Then the Zero adjustment mark is shown on the LCD for
about one second.
(2) Measurement
Press the Jaw trigger to open the transformer jaws and clamp
them onto the conductor under test and take the reading on the
display. (See the figure below.)
When the current flows in the
same direction as indicated by
the arrow mark on the jaws, the
polarity of the reading is positive
and vice versa.
* %(Span) display
The sub-display shows percentage value as the basis of 4mA is
0% and 20mA is 100%. (at 20mA Range only) The percentage is
displayed on the main display by pressing the DISP button. In this
case, the current value is displayed on the sub-display.
* When connecting the Analog output cord to the instrument, the
sub-display shows  OUT for 1 sec.
When making measurements for long periods of time:
- leave the instrument for the warm-up period of several tens of
minutes after powering it on, and then start a recording.
- readings will vary when the ambient temperature changes. In
this case, the temperature coefficients specified at clause 3 and
fluctuations at zero (about 20 counts fluctuate when temperature
changes by 10ºC) should be taken into consideration.
8 Battery replacement
# WARNING
Ensure that the Clamp sensor is disconnected from the
object under test, and that the instrument is powered off
when opening the Battery compartment cover for battery
replacement.
# CAUTION
Do not mix new and old batteries or mix different types of
batteries.
Install batteries in correct polarity as marked inside.
Replace batteries with the new
ones when the empty battery mark
is displayed on the LCD.
The LCD does not show anything,
ev en t he em pty ba ttery ma rk,
when the batteries are completely
exhausted.
[ How to replace batteries ]
(1) Power off the instrument.
(2) Loosen the screw at the backside of the instrument and
remove the Battery compartment cover.
(3) Remove all the old batteries and install new ones, four size
AA batteries, in correct polarity. The use of alkaline batteries
(LR6) is recommended.
(4) Reattach the Battery compartment cover and tighten the
screw.
DC Milliamp Clamp Meter
KEW 2500
The table at the right shows the
relationship between %(Span)
values and the measured values
(mA).
T h e p e r c e n t a g e v a l u e i s
calculated based on the following
formula, assuming the measured
value as X.
Percentage = ( )|X| - 4.00 ×6.25
Measured values (mA Percentage display (%)
20.00 100.0
0.00 25.0
2.00 12.5
4.00 0.0
12.00 50.0
20.00 100.0
100.0 −−−
* Over-limit indication
When the input exceeds the max measuring range (126.0mA),
"OL" or  -OL (for negative values) is indicated on the display.
When the Range reaches to the 100mA, bars (---) are displayed
instead of the percentage value.
7 Other functions
7.1 Data Hold Function
This is a function to freeze the measured value on the display.
Press the Data hold button once to freeze the reading. The
reading will be held regardless of subsequent variation in input.
The Data hold mark " " is indicated on the display while the
instrument is in the Data Hold mode. To exit Data Hold mode,
press the Data hold button again.
7.2 Auto-power-off function
The instrument automatically powers off about 10 min after the
last operation. This function is disabled while the cord is being
connected to the analog output terminal. To disable this function
at all times, hold down the Data hold button while powering on the
instrument. The LCD shows P.oFF for about 1 sec immediately
after powering on the instrument. To restore this function, power
off once and power on again.
7.3 Backlight & LED light
Press the Light button to turn on or off the LED light and LCD
backlight. These lights automatically turn off after two minutes.
To disable the automatic light timeout, hold down the Light button
while powering on the instrument. The LCD shows  L.oFF for
about 1 sec immediately after powering on the instrument. To
restore this function, power off once and power on again.
7.4 Analog output function
DC voltage signal corresponding to the measured result is output
from the Analog output terminal. (10mV/mA) It can be checked on
a recorder or a digital multi-meter connected to the instrument by
using MODEL7256 output cord.
correct wrong
Screw
Battery
compartment
cover
Zero ADJ.
button
DISP button
(to switch displays)
Light button
LED light
Data hold button
Power button
Trigger
L CD
Analog output
terminal
Transformer Jaws
Polarity mark
Barrier
Main unit
Clamp sensor
Battery level indicator
Hold mark
Zero ADJ. mark
BarrierIt is a part providing protection against electrical shock and
ensuring the minimum required air and creepage distances.
Sub display
Main display
LCD
3-22 92-2078C
DISTRIBUTOR
Kyoritsu reserves the rights to change specifications or designs
described in this manual without notice and without obligations.
To digital multi-
meter or recorder
Analog output
cord M-7256


Produkt Specifikationer

Mærke: Kyoritsu
Kategori: Multimeter
Model: KEW 2500

Har du brug for hjælp?

Hvis du har brug for hjælp til Kyoritsu KEW 2500 stil et spørgsmål nedenfor, og andre brugere vil svare dig




Multimeter Kyoritsu Manualer

Kyoritsu

Kyoritsu KEW-2046R Manual

14 December 2024
Kyoritsu

Kyoritsu KEW 6010B Manual

14 December 2024
Kyoritsu

Kyoritsu KEW 2433R Manual

16 November 2024
Kyoritsu

Kyoritsu KEW 2432 Manual

16 November 2024
Kyoritsu

Kyoritsu KEW2046R Manual

20 September 2024
Kyoritsu

Kyoritsu KEW 2510 Manual

29 August 2024
Kyoritsu

Kyoritsu KEW 2500 Manual

29 August 2024
Kyoritsu

Kyoritsu KEW 2413R Manual

29 August 2024
Kyoritsu

Kyoritsu KT 200 Manual

29 August 2024
Kyoritsu

Kyoritsu 2431 Manual

29 August 2024

Multimeter Manualer

Nyeste Multimeter Manualer

Owon

Owon HDS100 Manual

21 December 2024
Owon

Owon 1000A Manual

18 December 2024
IWH

IWH 73556 Manual

16 December 2024
Vimar

Vimar 20433.N Manual

15 December 2024
Vimar

Vimar 19433.M Manual

15 December 2024
Vimar

Vimar 14433.SL Manual

15 December 2024
Sanwa

Sanwa ACS101 Manual

8 December 2024
Sanwa

Sanwa TA55 Manual

8 December 2024
Sanwa

Sanwa SP20 Manual

8 December 2024
