ANGLE
GRINDER KIT
125mm (5”) 1200W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 1200W
No Load Speed: 12,000/min
Cutting Diameter: 125mm (5”)
Spindle: M14
Bore Size: 22mm
Max. Disc Thickness: 6mm
Weight: 1.95kg
AGB-1200

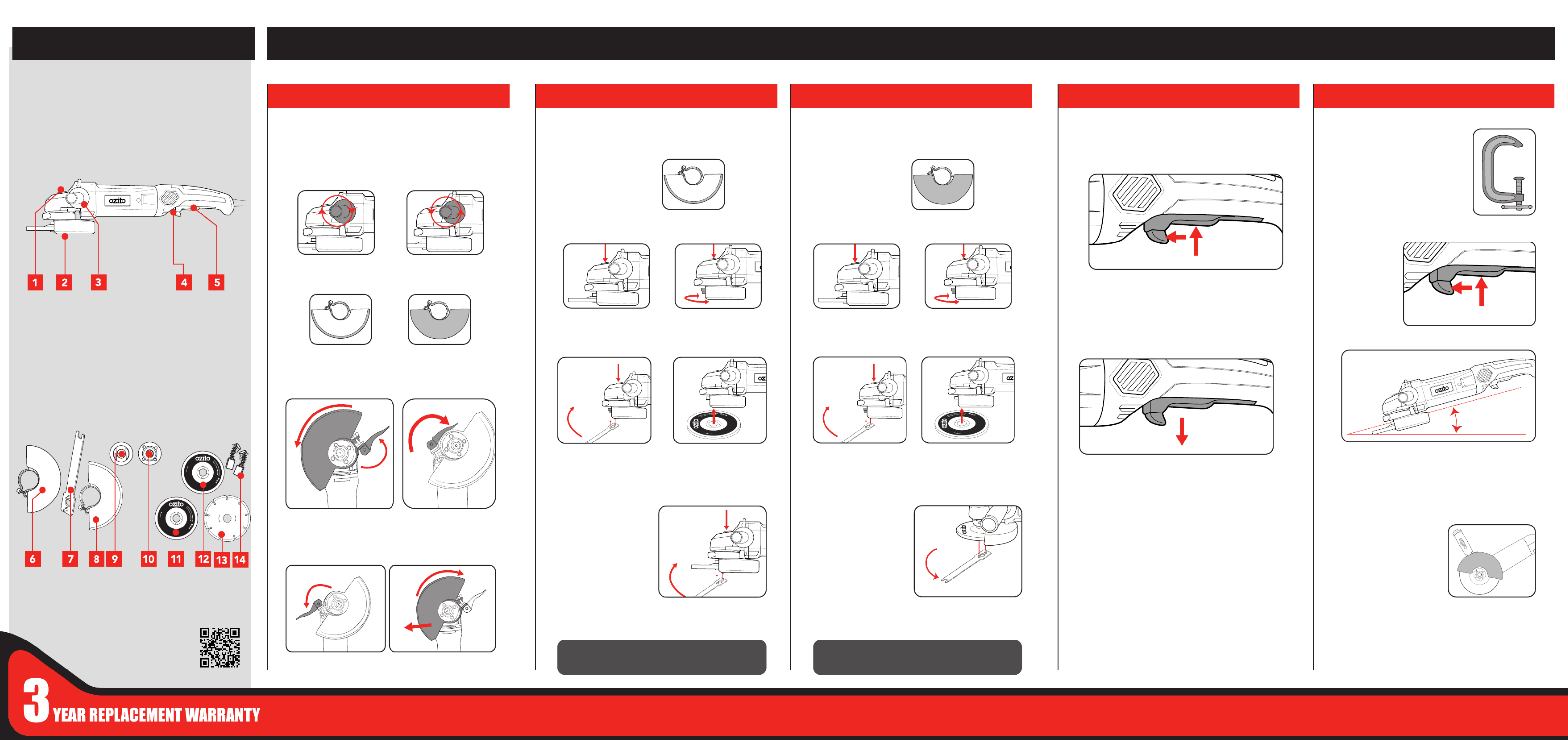

WHAT’S IN THE BOX
Angle Grinder
Inner & Outer Flange
Pin Spanner & Spare
Brushes
Side Handle
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: grinding discs,
carbon brushes, disc guard, flange.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• Keep the ventilation vents of the angle grinder clean at all times, if possible,
prevent foreign matter from entering the vents.
• The grease in the gearbox will require replacement / replenishment after
extensive use of the grinder. Please see a qualied electrical repairer to
provide this service.
• After each use, blow air through the angle grinder housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the angle grinder to overheat and fail.
• If the enclosure of the angle grinder requires cleaning, do not use solvents but
a moist soft cloth only. Never let any liquid get inside the angle grinder; never
immerse any part of the angle grinder into a liquid.
• Make sure cutting and grinding wheels are stored at when not in use.
• Ensure cutting and grinding wheels haven’t been dropped and have no cracks
or damage before use.
Carbon Brushes
When the carbon brushes wear out, the angle
grinder will spark and/or stop. Discontinue use as
soon as this happens. They should be replaced
prior to recommencing use of the angle grinder.
Carbon brushes are a wearing component of the
angle grinder therefore not covered under warranty.
Continuing to use the angle grinder when carbon
brushes need to be replaced may cause permanent
damage. Carbon brushes will wear out after many uses but when the carbon
brushes need to be replaced, take the angle grinder to an electrician or a power
tool repairer for a quick and low cost replacement. Always replace both carbon
brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the by an unauthorised person or by mishandling angle grinder
of the angle grinder.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the grinder failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: enquiries@ozito.com.au
SPARE PARTS
ozito.com.au
Grinding Discs,
Metal Cutting Disc &
Diamond Cutting Disc
Grinding Guard &
Cutting Guard
0417
D
a
n
g
e
r
:
D
o
n
o
t
e
x
c
e
e
d
t
h
e
m
a
x
.
s
a
f
e
s
p
e
e
d
1
2
5
m
m
(
5
”
)
M
e
t
a
l
G
r
i
n
d
i
n
g
D
i
s
c
M
a
x
1
2
,
2
0
0
R
P
M
125x1.9x22.23mm
Volts HertzV Hz
Alternating current Watts ~ W
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
Read instruction manual
Always wear gloves
Wear eye protection
Always wear ear, eye and
safety mask
no No load speed
ANGLE GRINDER SAFETY INSTRUCTIONS
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician
or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool
is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! a) This power tool is intended to function as a grinder or cut-off tool. Read all
safetywarnings,instructions,illustrationsandspecicationsprovidedwiththispowertool.
Failuretofollowallinstructionslistedbelowmayresultinelectricshock,rand/orserious
injury.
b) Operations such as sanding, wire brushing, or polishing are not recommended to be performed
with this power tool. Operations for which the power tool was not designed may create a hazard and cause
personal injury.
c)Donotuseaccessorieswhicharenotspecicallydesignedandrecommendedbythetool
manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe
operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can break and y apart
e) The outside diameter and the thickness of your accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted
byanges,thearbourholeoftheaccessorymusttthelocatingdiameteroftheange.Accessories
that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and
may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for
chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power
tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and
installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and
run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart
during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of
stopping small abrasive or work piece fragments. The eye protection must be capable of stopping ying debris
generated by various operations . The dust mask or respirator must be capable of ltrating particles generated
by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear
personal protective equipment. Fragments of workpiece or of a broken accessory may y away and cause
injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live” and shock the operator.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come to a complete stop. The spinning
accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may cause electrical hazards.
o)Donotoperatethepowertoolnearammablematerials.Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in
electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that is
entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick
out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the
result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking
proper precautions as given below.
a)Maintainarmgriponthepowertoolandpositionyourbodyandarmtoallowyoutoresist
kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque
reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions
are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control
or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent
kickback and loss of control.
Additional safety instructions for grinding and abrasive cutting-off operations
a)Useonlywheeltypesthatarerecommendedforyourpowertoolandthespecicguarddesigned
for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded
and are unsafe.
b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip.
An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the
least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken
wheel fragments and accidental contact with wheel.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of
cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels
may cause them to shatter.
e)Alwaysuseundamagedwheelangesthatareofcorrectsizeandshapeforyourselectedwheel.
Proper wheel anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off
wheels may be different from grinding wheel anges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not
suitable for the higher speed of a smaller tool and may burst.
Additional safety instructions for abrasive cutting-off operations:
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the
wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point
of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the
power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold
the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off
wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective
action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the work piece. Let the wheel reach full speed and carefully
reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the work piece.
e) Support panels or any oversized work piece to minimize the risk of wheel pinching and kickback.
Large work pieces tend to sag under their own weight. Supports must be placed under the work piece near the
line of cut and near the edge of the work piece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding
wheel may cut gas or water pipes,electrical wiring or objects that can cause kickback.
The tool is recommended for use with a residual current device with a rated residual current of 30mA
or less.
D
a
n
g
e
r
:
D
o
n
o
t
e
x
c
e
e
d
t
h
e
m
a
x
.
s
a
f
e
s
p
e
e
d
1
2
5
m
m
(
5
”
)
M
e
t
a
l
C
u
t
t
i
n
g
D
i
s
c
M
a
x
1
2
,
0
0
0
R
P
M
Produkt Specifikationer
| Mærke: | Ozito |
| Kategori: | Kværn |
| Model: | AGB-1200 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Ozito AGB-1200 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Kværn Ozito Manualer
29 November 2023
19 Oktober 2023
1 Oktober 2023
12 September 2023
27 Juli 2023
21 Februar 2023
19 Februar 2023
4 Oktober 2022
Kværn Manualer
- Kværn Scheppach
- Kværn Bosch
- Kværn Metabo
- Kværn DeWalt
- Kværn RYOBI
- Kværn Silverline
- Kværn Skil
- Kværn AEG
- Kværn Makita
- Kværn Worx
- Kværn Dolmar
- Kværn Güde
- Kværn ABB
- Kværn Biltema
- Kværn Vonroc
- Kværn Hyundai
- Kværn Milwaukee
- Kværn Parkside
- Kværn Adler
- Kværn Black And Decker
- Kværn Trotec
- Kværn Einhell
- Kværn Proxxon
- Kværn Stanley
- Kværn Hikoki
- Kværn Hilti
- Kværn Hitachi
- Kværn United Office
- Kværn Falke
- Kværn Festool
- Kværn Fein
- Kværn Powerfix
- Kværn Craftsman
- Kværn Powerplus
- Kværn Westfalia
- Kværn Genesis
- Kværn Eibenstock
- Kværn Porter-Cable
- Kværn Ridgid
- Kværn Cotech
- Kværn ECG
- Kværn Hazet
- Kværn Gladiator
- Kværn Bavaria By Einhell
- Kværn RIKON
- Kværn McKenzie
- Kværn Steren
- Kværn Maestro
- Kværn Mac Tools
- Kværn Workzone
- Kværn Tryton
- Kværn Profitec
- Kværn Stalco
- Kværn Neo
- Kværn Prowork
Nyeste Kværn Manualer
17 November 2024
16 November 2024
14 November 2024
7 November 2024
2 Oktober 2024
13 September 2024
13 September 2024
13 September 2024
13 September 2024
13 September 2024
