Side 1/3
Specifications subject to change due to product upgrades and improvements.
*Go to www.panamax.com for detailed noise filtering information.
Español - Para la versión en español de este documento, vaya a www.panamax.com/products
Français - Pour la version espagnole de ce document, allez à www.panamax.com/products
DIN-00017 - REV. D
OUTLET BANKS 1, 2 and 3
INDICATOR LEDS
POWER ON / OFF
ON / OFF, CONTROL FOR
DECORATIVE BLUE LIGHTS AND VOLTMETER
(Voltmeter and blue lights can be illuminated when power is off)
SAFE POWER AND
VOLTAGE INDICATOR
UNSAFE VOLTAGE
INDICATOR
LINE FAULT
INDICATOR
FRONT PANEL
CONVENIENCE OUTLET
(SWITCHED)
USB CHARGER
5VDC, 500mA
10 ft. POWER
CORD,
NEMA 5-15
GROUND LUG
15 AMP CIRCUIT
BREKAER
RESETTABLE
OUTLET BANK 3
(DELAYED CURRENT)
OUTLET BANK 2
(SWITCHED)
OUTLET BANK 1
(ALWAYS ON)
LAN SURGE
PROTECTION
1 PAIR OF
RJ-45 IN/OUT
CONNECTORS
COAXIAL SURGE
PROTECTION
2 PAIRS
UNIVERSAL
IN/OUT
CONNECTORS
TELCO SURGE PROTECTION
1 PAIR OF RJ-11 IN/OUT CONNECTORS
Note to CATV Installers:
This reminder is provided to call attention to Article 820-40 of the NEC. That article provides
specific guidelines for proper grounding.It specifies that the cable ground shall be connected
to the grounding system of the building and as close to the point of entry as practical.

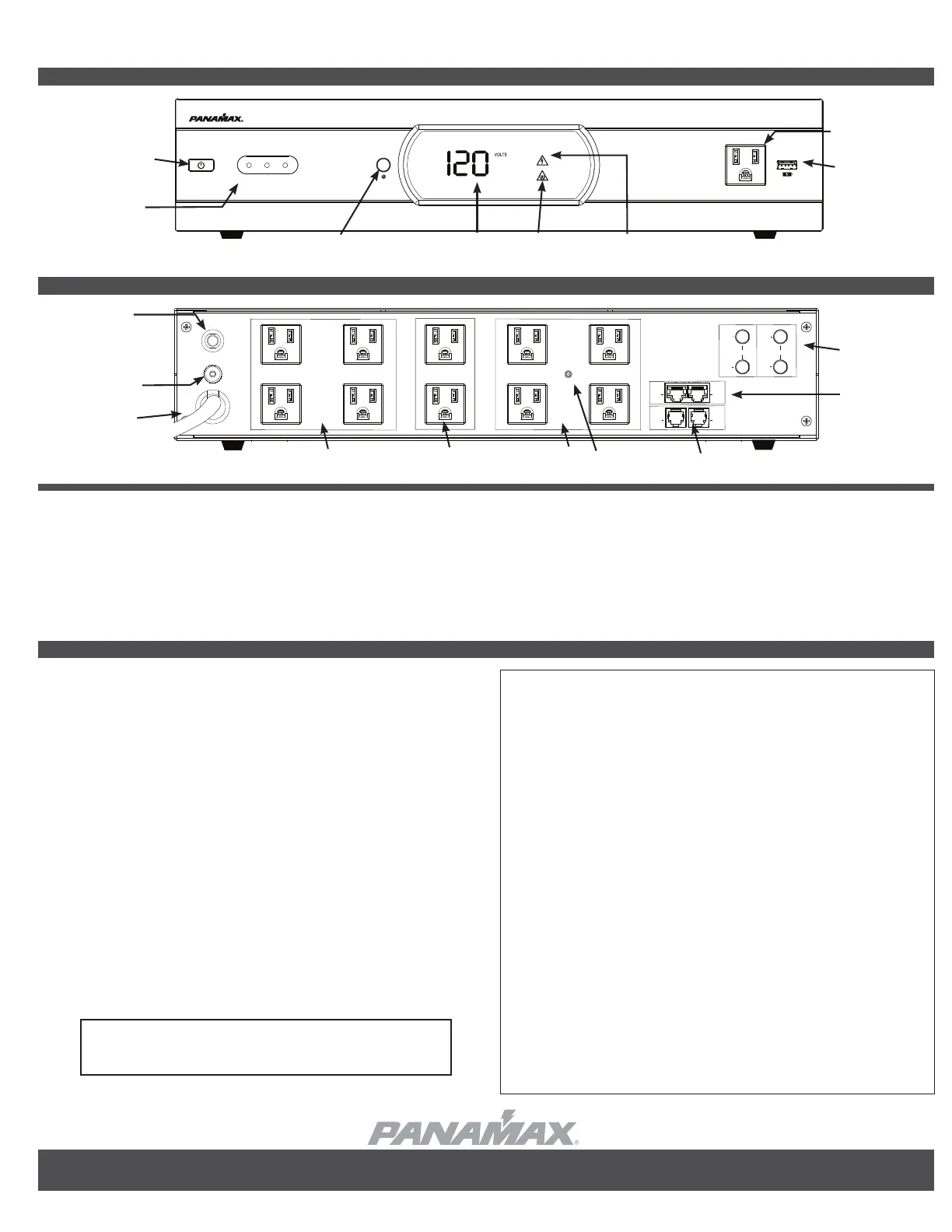

Front Panel Features
MR5100 Features and Specifications
Panamax LLC, 1800 South McDowell Blvd., Petaluma, CA 94954 • 707-283-5900 • 800-472-5555 • www.panamax.com
©2012 Panamax LLC, Panamax Logo is a US registered trademark of Core Brands, LLC.
Model MR5100 Reference Guide
AC PROTECTION
Protect or Disconnect Circuitry_________________________________________________Yes
Patented Power Management Circuit____________________________________________Yes
Overvoltage Shutoff____________________________________________________ 140V ±3V
Undervoltage Shutoff___________________________________________________ 100V ±1V
Thermal Fusing___________________________________________________________Yes
Line Voltage___________________________________________________120VAC, 50/60HZ
Initial Clamping Level__________________________________________ 200V Peak, 141VRMS
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)____________________________400V
Protection Modes_________________________________________________ L-N, L-G, N-G
Maximum Current Rating_____________________________________________15A (1800W)
EMI/RFI Noise Filtration______________________________ Panamax Level 3 Noise Filtration*
Response Time__________________________________________________________< 1ns
Single Pulse Energy Dissipation_________________________________________2025 Joules
Peak Impulse Current___________________________________________________52,000 A
LAN PROTECTION
Clamping Level____________________________________________________ 62±6V @ 1 mA
Compatibility___________________________________________________10/100/1000bT
Wires Protected _______________________________________________________8-Wires
Connectors____________________________________________________________RJ-45
TEL PROTECTION
Fuseless/Auto-Resetting________________________________________________Yes
Clamping Level__________________________________________________________260V
Wires Protected _________________________________________________ 2 wire, 1 pair (4, 5)
Connectors_________________________________________________________RJ-11
UNIVERSAL COAX PROTECTION
HD 1080 i/p Ready_________________________________________________________Yes
Bidirectional__________________________________________________________Yes
Shielded____________________________________________________________Yes
Clamping Level___________________________________________________________75V
Frequency Range_________________________________________________OMHz - 2.2 GHz
Insertion Loss_________________________________________________________ <0.5 dB
Connections______________________________________________ Female “F”, Gold Plated
Key Features
Exclusive Automatic Voltage Monitoring (AVM)
Panamax’s patent pending power monitoring
circuitry constantly monitors the AC line voltage
for unsafe voltage conditions such as momentary
spikes, prolonged over-voltages and under-volt-
ages (brownouts). These unsafe conditions pose
a very dangerous threat to all electronic equip-
ment within the home. If the MR5100 senses
an unsafe power condition, it will automatically
disconnect power from your equipment to pro-
tect equipment from damage. The front panel
indicator will also alert users to the power condi-
tion. Once the voltage returns to a safe level, the
MR5100 will automatically reconnect the power
to the outlets.
Protect or Disconnect™ Technologies
In the event of a catastrophic surge such as light-
ning, it completely disconnects AC power to con-
nected equipment.
Front Panel Outlet
MR5100 features a protected and noise filtered
convenience outlet located on the front panel.
Perfect for temporary gaming systems, por-
table electronics (such as music players or smart
phones), or other personal electronics.
Front Panel Decorative Lights
Blue decorative lights add an attractive look at feel
to your equipment rack or TV cabinet.
Antenna, Cable, Sat and LAN Signal protection
Coaxial protection circuits prevent damaging
surges from entering through signal paths and
have the smallest signal loss on the market - less
than 0.5 db of attenuation from 0Hz to 2.2GHz.
Our coaxial protection has been specifically
designed to virtually eliminate signal loss. The
clamping level of 75V will meet and exceed the
demands of both cable and satellite voltages
while minimizing exposure to damaging spikes
and surges. LAN protection allows for 10/100
base-T Ethernet equipment to integrate into an
audio/video system without the risk of upstream
surge damage from a gateway, switch, router or
other network device.
Eleven Protected and Filtered Power Outlets
(see specifications)
Ten Foot Power Cable with Straight Plug
NEMA 5-15P, fixed starin relief, unshielded,
straight plug.
TO GET STARTED
1. With MR5100 disconnected from the wall outlet, plug the equipment to be protected into the MR5100
AC outlets.
2. Connect any LAN, TELEPHONE and COAX lines to be protected to the appropriate connectors on the
MR5100.
3. Plug the MR5100 into the wall outlet and verify that the LINE FAULT INDICATOR LED is NOT lit, indicat
-
ing that the wall outlet is properly wired and grounded. If it is LIT, call a licensed electrician to inspect and
implement proper and safe wiring.
4. Turn on MR5100 by pressing the POWER ON button and proceed to turn on your connected equipment.
IMPORTANT SAFETY POINTS
Panamax surge protectors and the connected equipment must be indoors, in a dry location and in the same
building. Although your Panamax protector is very durable, its internal components are not isolated from the
environment. Do not install any Panamax product near heat emitting appliances such as a radiator or heat register.
Do not install this product where excessive moisture is present; for example near a bath tub, sink, pool basement
floor, fish tank, etc. It is not uncommon for a building to be improperly grounded. In order to protect your equipment,
Panamax products must be plugged into a properly wired and grounded 3-wire outlet. Additionally, building wiring
and grounding must conform to applicable NEC (USA) or CEC (Canada) codes for the Panamax protection policy to
be valid. Do not use 2-blade adapters or any other “power strips” with this product. Use only Panamax extension
cord, or a UL / CSA recognized power cord.
Back Panel Features
BANK 1 ON
INDICATOR LIGHT
BANK 1 BANK 2 BANK 3
MR5100
CATV / SAT 1
UNIVERSAL COAX PROT ECT IO N
CATV / SAT 2
TEL
OUT
IN
OUT
LAN
OUT
TEL
IN
LAN
IN
IN
OUT
BANK 3
HIGH CURRENT
DELAYED
OUT LET S
BANK 1
FILTERED / LIFT
ALWAYS ON
OUT LET S
BANK 2
FILTERED / LIFT
SWITCHED OUT LET S BANK 1 ON
GROUND
LUG
15 AMP
CIRCUIT
BREAKER
MAIN POWER 120 VAC/15A
LAN PROTECTION
TEL PROT ECT IO N
