ISSUED: 06-13-08 SHEET #: 202-9260-2
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
1 of 1
DC
Model: PLP V4X2
A
Before you start make sure all parts listed are included with your product.
This product is UL Listed. It
must be installed by a qualified
professional installer.
R
IMPORTANT! Read instruction sheet before you start installation and assembly.
• Do not overtighten! Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb (30-40 kg • cm).
WARNING
B

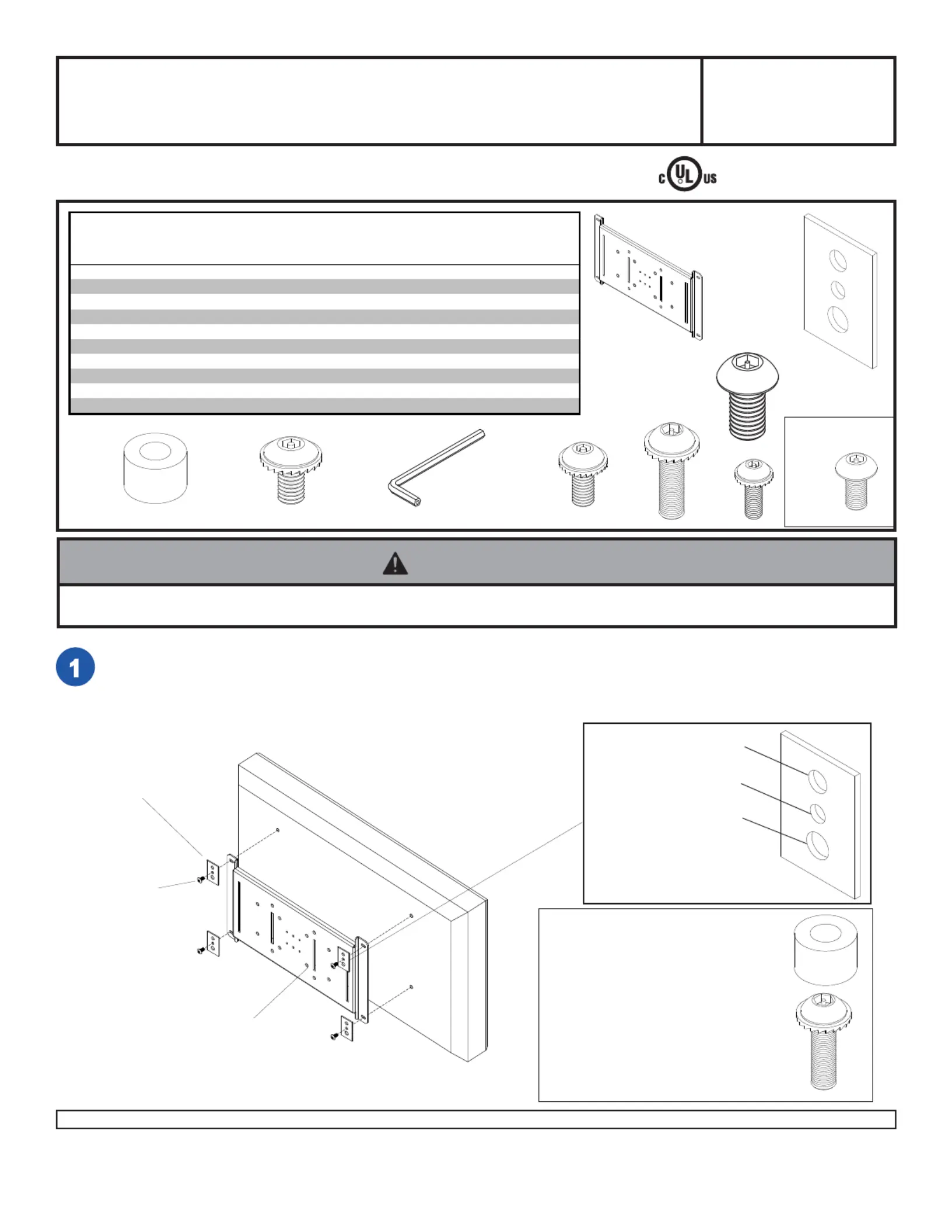

Installation and Assembly - Adapter Bracket for VESA
®
400 x 200 Screens
F
Begin with shortest length screw (C, F, G, or J), hand thread through washer (I) and adapter plate into screen as
shown below. Screw must make at least three full turns into screen insert and fit snug into place. Do not over
tighten. If screw cannot make three full turns into screen insert, select a longer length screw (E). Repeat for remain-
ing holes. If you have any questions, please call Peerless customer care at 1-800-865-2112.
B
© 2008, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
For RCA J32L637 use spacer
(B) with M6 x 20 mm socket
pin serrated washer head
screw (E).
Spacers go between adapter
plate and screen.
A
C, E, F
G, or J
E
EH
Used with specific
mounts only
J
I
I
BOTTOM (LARGE HOLE)
FOR M6 SCREWS
TOP (MEDIUM HOLE)
FOR M5 SCREWS
MIDDLE (SMALL HOLE)
FOR M4 SCREWS
NOTE: SCREW (J) DOES NOT
REQUIRE WASHER (I)
G
Description Qty Part #
A
adapter bracket 1 201-1589
Bspacer 4 540-9416
CM6 x 12 mm socket pin serrated washer head screw 4 510-1050
D4 mm allen wrench 1 560-9646
EM6 x 20 mm socket pin serrated washer head screw 4 510-9554
FM5 x 12 mm socket pin serrated washer head screw 4 510-1064
GM4 x 12 mm socket pin serrated washer head screw 4 510-1079
HM5 x 10 mm socket pin screw 4 520-1063
Iwasher 4 580-1036
JM8 x 15 mm socket pin security bolt 4 520-1068
Parts List
