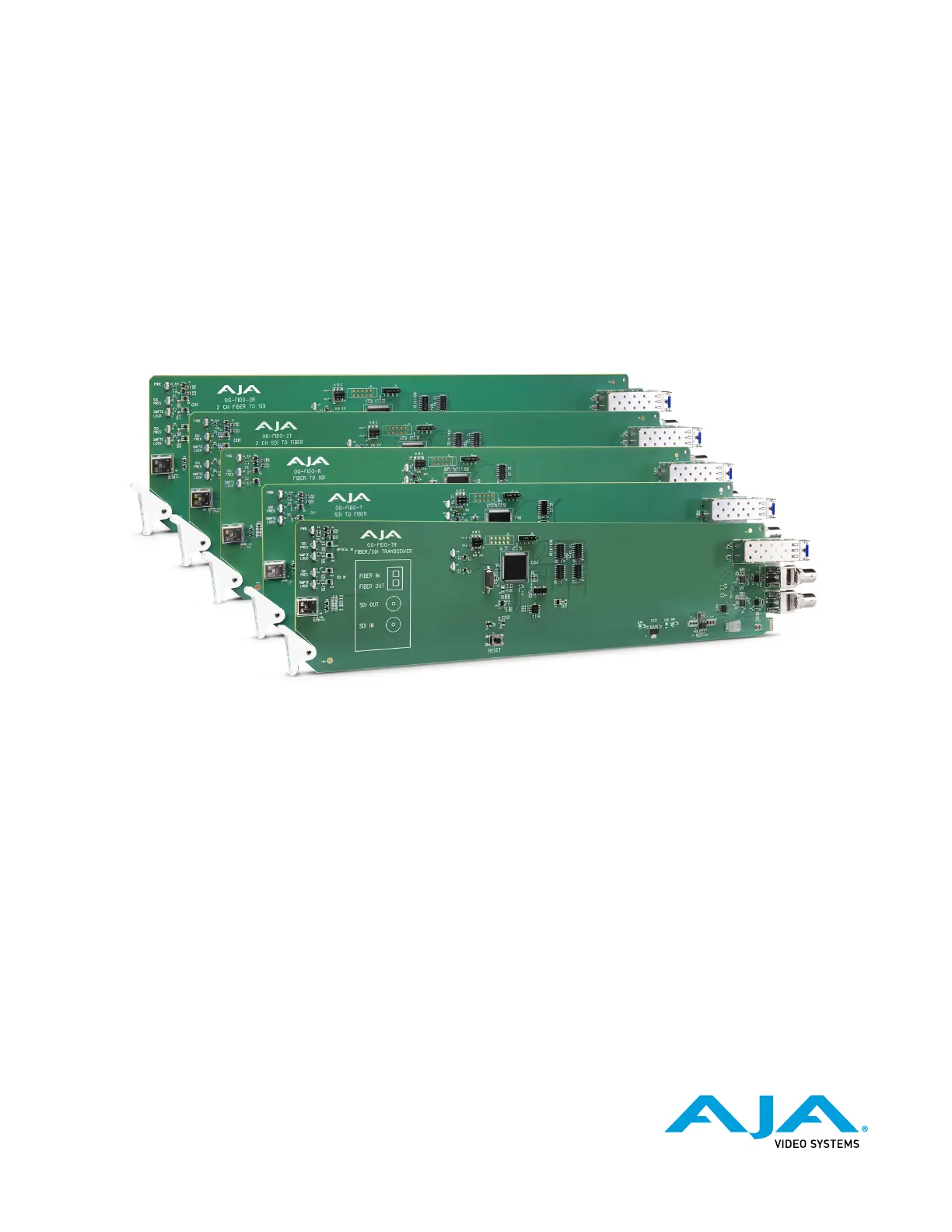

OG-FiDO-Series
openGear Card
Version 2.0.1
Published December 18, 2020
Installation and Operation Guide
OG-FiDO-Series openGear Card v2.0.1 2 www.aja.com
Notices
Trademarks
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.
Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of
AJA Video Systems, Inc.
AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.
All other trademarks are the property of their respective owners.
Copyright
Copyright © 2020 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.
Contacting SupportAJA
When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:
Telephone +1.530.271.3190
FAX +1.530.271.3140
Web https://www.aja.com
Support Email support@aja.com
Sales Email sales@aja.com
OG-FiDO-Series openGear Card v2.0.1 16 www.aja.com
Figure 11. Main Sections of the DashBoard User Interface
Parameter
Controls
Card Information
and Status
Basic Tree View of
Frames and Cards
Basic Tree View of Frames and Cards
The basic tree view in the left column shows the frames and cards that are
discoverable by DashBoard on your network.
Card Information and Status
The card information and status panel, shown in the middle panel, display the
basic status of the card currently selected in DashBoard. The yellow fields in this
panel indicate that they are read-only.
Parameter Controls
The parameter controls panel on the right side of DashBoard shows the tabs and
parameters that are configurable for the selected card.
OG-FiDO-Series openGear Card v2.0.1 22 www.aja.com
Figure 17. Uploading to Selected Devices window in DashBoard
6. When the progress bar indicates that the uploading is nished and status
indicates "Complete," click . OK
7. To verify the version of software or rmware currently installed on your
card, select the Card tab from the center panel of DashBoard.
OG-FiDO-Series openGear Card v2.0.1 23 www.aja.com
Figure 18. OG-FiDO-Series Card Tab Screen in DashBoard indicating the
currently installed software version.
Rebooting
Rebooting is a standard function built in to the DashBoard Control System, and
should only be performed if the board has become unresponsive.
WARNING: During a reboot, any card operations will be briefly interrupted, but will
be restored once the reboot has completed.
To Reboot the OG-FiDO-Series
1. Click the Reboot button in the lower panel of DashBoard. The reboot
conrmation message displays.
Figure 19. Reboot confirmation window
2. . The message "Loading data, please wait. Refreshing device data" Click Yes
displays for a moment. The card will be oine for a few seconds, and any
current operations will be interrupted.
