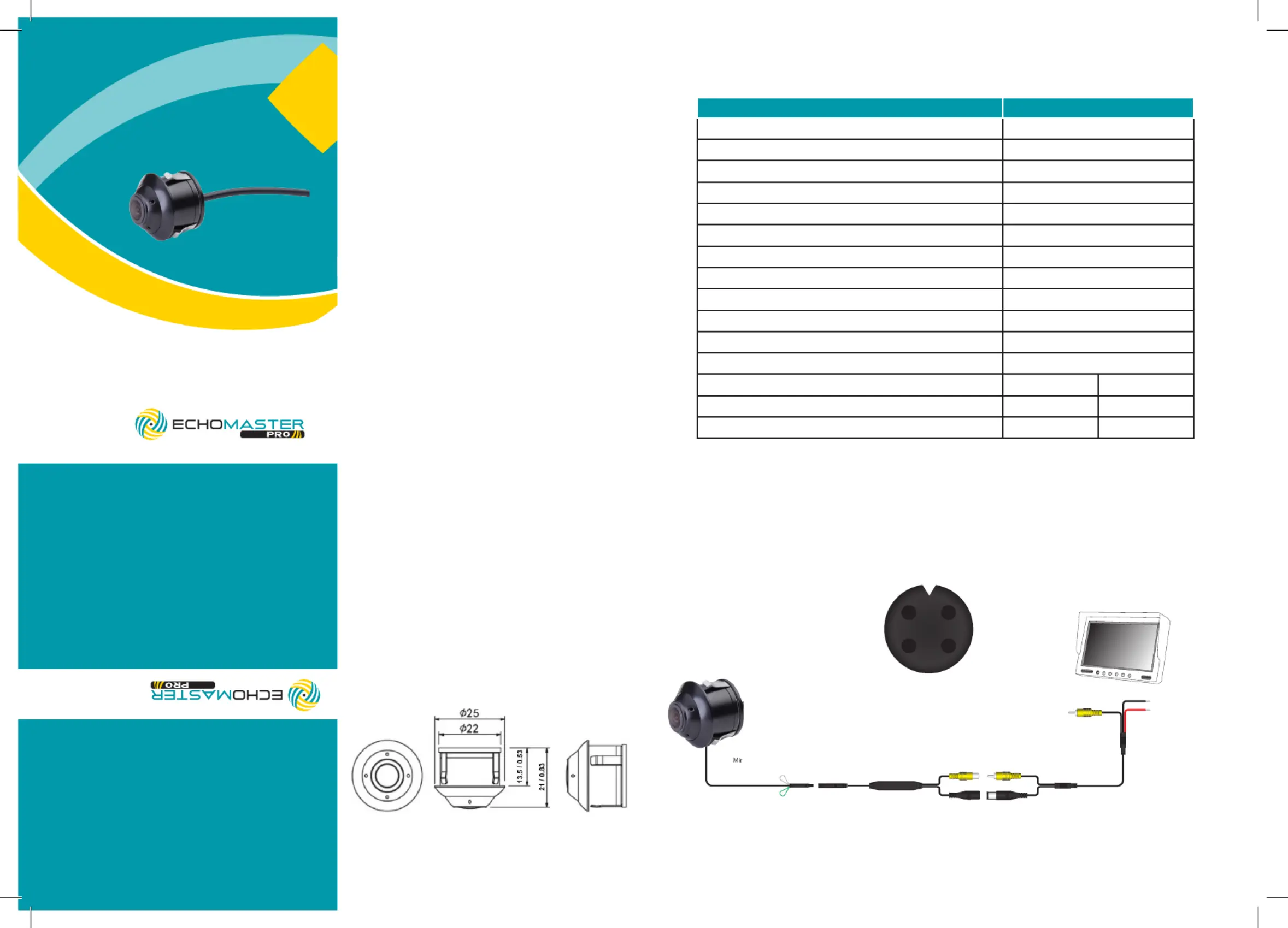

User Manual
Adjustable Angle Side, Front
or Rear Mount Camera
PCAM-360
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.3 LUX
u IP67 Rated
u 170° Viewing Angle
u Selectable Image (mirrored/non-mirrored)
Box Contents
u Camera
u Manual
u Mounting Hardware
u Hole Saw
u Harness
u Angle Adjustment Tool
Wiring Diagram & Pin Out
Dimensions (mm/in)
Specication
PCAM-360-P I PCAM-360-N
Sensor Type 1/4” CMOS
LEDs 0
Illumination 0.3 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal View YES
Water/Debris-Proof IP67
Audio NO
Power Supply 9-16V DC
Current <50mA
Working Temperature -30ºC - +70ºC
Dimensions (mm) D (21) x W (25) x H (25)
System PAL NTSC
TV Lines 420 420
Resolution 648 x 488 648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers
u PCAM-360-P
u PCAM-360-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
+12V GND
1 2
43
Video
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
GND (Black)
VIDEO
Switched +12V (Red)
1.7m / 68in
email - support@aampglobal.com (US)
email - technical.eu@aampglobal.com (Europe)
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
Woolmer Way, Bordon, Hampshire,
GU35 9QE, United Kingdom
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
5.5m / 18ft
559mm / 22in
