PCAM-IRF
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - support@aampglobal.com (US)
email - technical.eu@aampglobal.com (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
User Manual
IP67 Commercial Camera
with Night Vision
Introduction
Thank you for purchasing your EchoMaster Pro
automotive camera.
The following part numbers are supported:
u PCAM-IRF-P
u PCAM-IRF-N
EchoMaster cameras are designed to improve safety
during driving by providing high quality images of
surrounding areas and obstacles in the vicinity of the
vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally visible
to the driver.
Please ensure you read and understand all aspects
of this manual before tting or using your EchoMaster
Camera. Choose a suitable mounting place dependent
on the application. Ensure that there are no wiring
harnesses or hoses/pipes located behind this panel
before drilling.
Key Features
u 1/3” CCD Sensor
u Operates at 0 LUX
u 18 IR LEDs
u IP67 Rated
u 120 Degree Viewing Angle
Box Contents
u Camera
u Bracket
u User Manual
u Wiring Harness

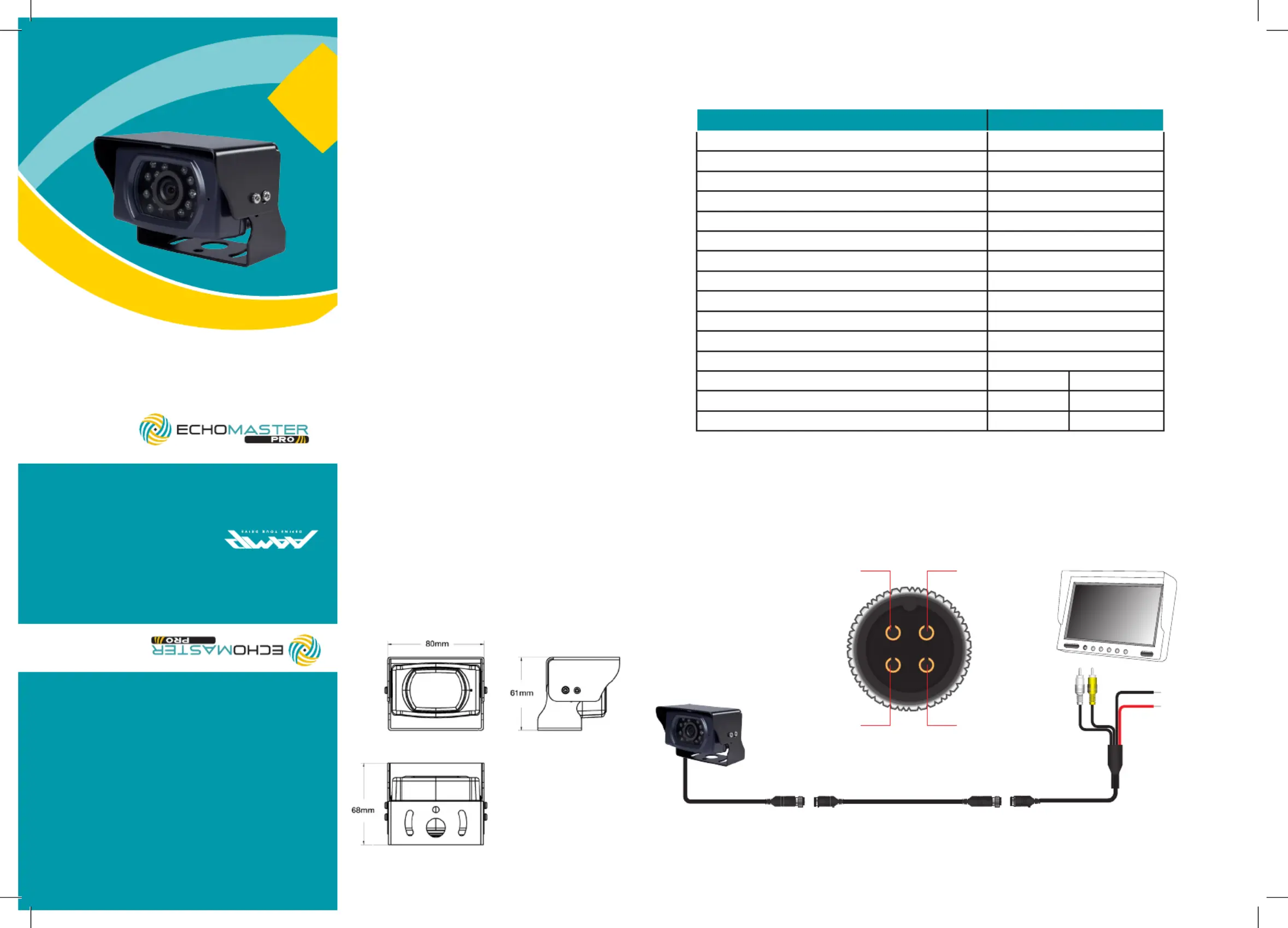

Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-IRF-P I PCAM-IRF-N
Sensor Type 1/3” CCD
LEDs 18
Illumination 0 LUX
Viewing Angle 120 degrees
Mirror Image YES
Normal View No
Water/Debris-Proof IP67
Audio YES
Power Supply 12V DC
Current <120mA
Working Temperature -20ºC - +70ºC
Dimensions (mm) D (68) x W (80) x H (61)
System PAL NTSC
TV Lines 480 N/A
Resolution 628 x 582 N/A
VIDEOAUDIO GND (Black)
+12V (Red)
1
23
4
POWER +12V VIDEO
AUDIOGROUND
1
2 3
4
