User Manual
2015-2016 Ford F150
Tailgate Handle Camera
PCAM-FD15
Introduction
Key Features
u 1/4” CMD Sensor
u Operates at 0.1 LUX
u IP67 Rated
u 170 Degree Viewing Angle
u Mirrored Image
Box Contents
u Camera
u Manual
u Wiring Harness

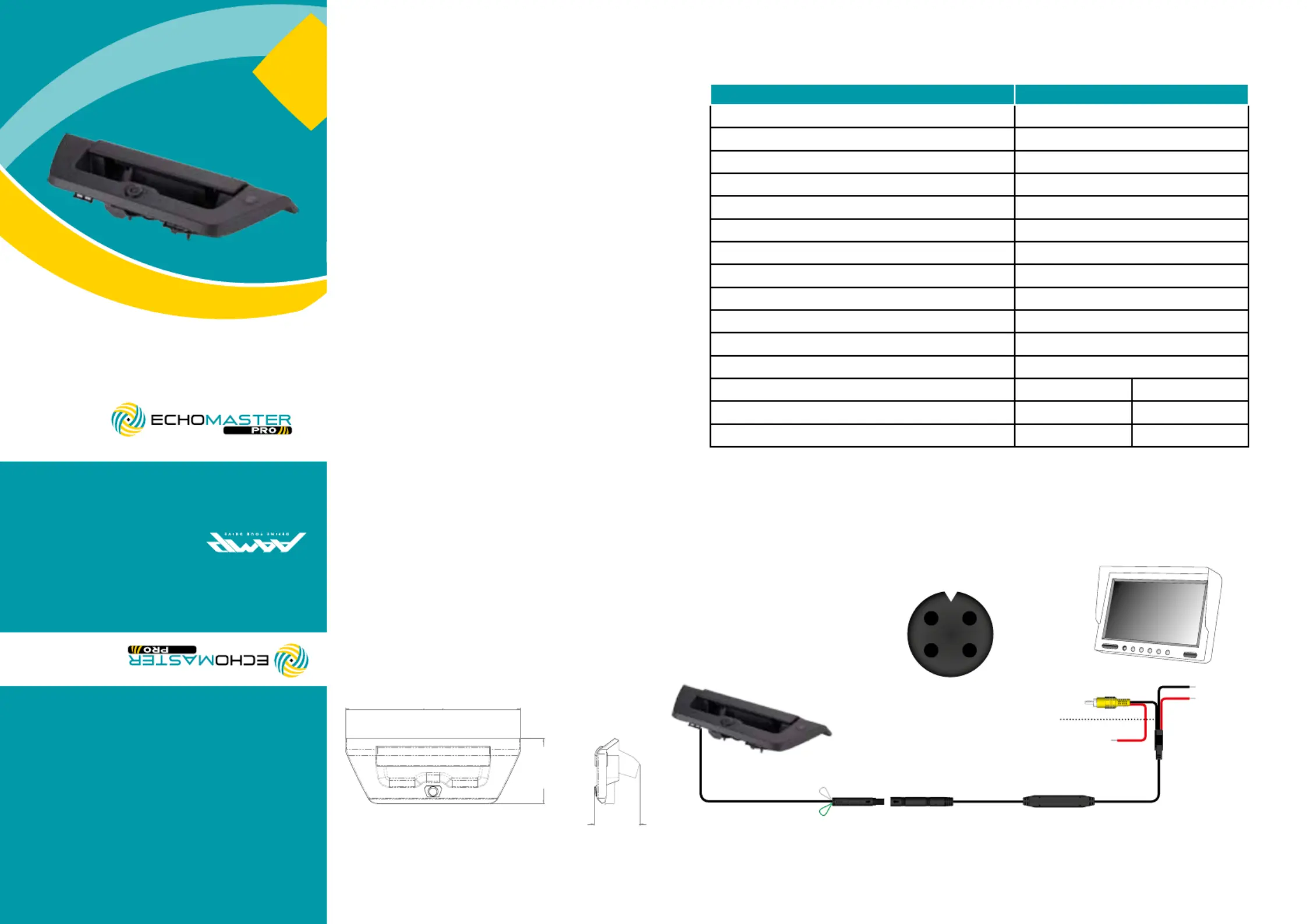

Wiring Diagram & Pin Out
Dimensions (mm/in)
Specications
PCAM-FD15-P I PCAM-FD15-N
Sensor Type 1/4” CMD
LEDs 0
Illumination 0.1 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal View No
Water/Debris-Proof IP67
Audio NO
Power Supply 9-16V DC
Current <150mA
Working Temperature -30ºC - +60ºC
Dimensions (mm/in) D (87/3.4) x W (334/13) x H (124/4.9)
System PAL NTSC
TV Lines N/A 420
Resolution N/A 648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-FD15-P
u PCAM-FD15-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
GND (Black)
VIDEO
+12V (Red)
+12V (Red)
+12V GND
1 2
43
Video
Audio
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - support@aampglobal.com (US)
email - technical.eu@aampglobal.com (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
86.92mm
3.42in
334mm
13.15in
124.30mm 4.89in
334mm / 13in
124.3mm
/ 4.9in
86.92mm
/ 3.4in
1753mm
5.75ft
5181mm / 17ft
1524mm / 5ft
