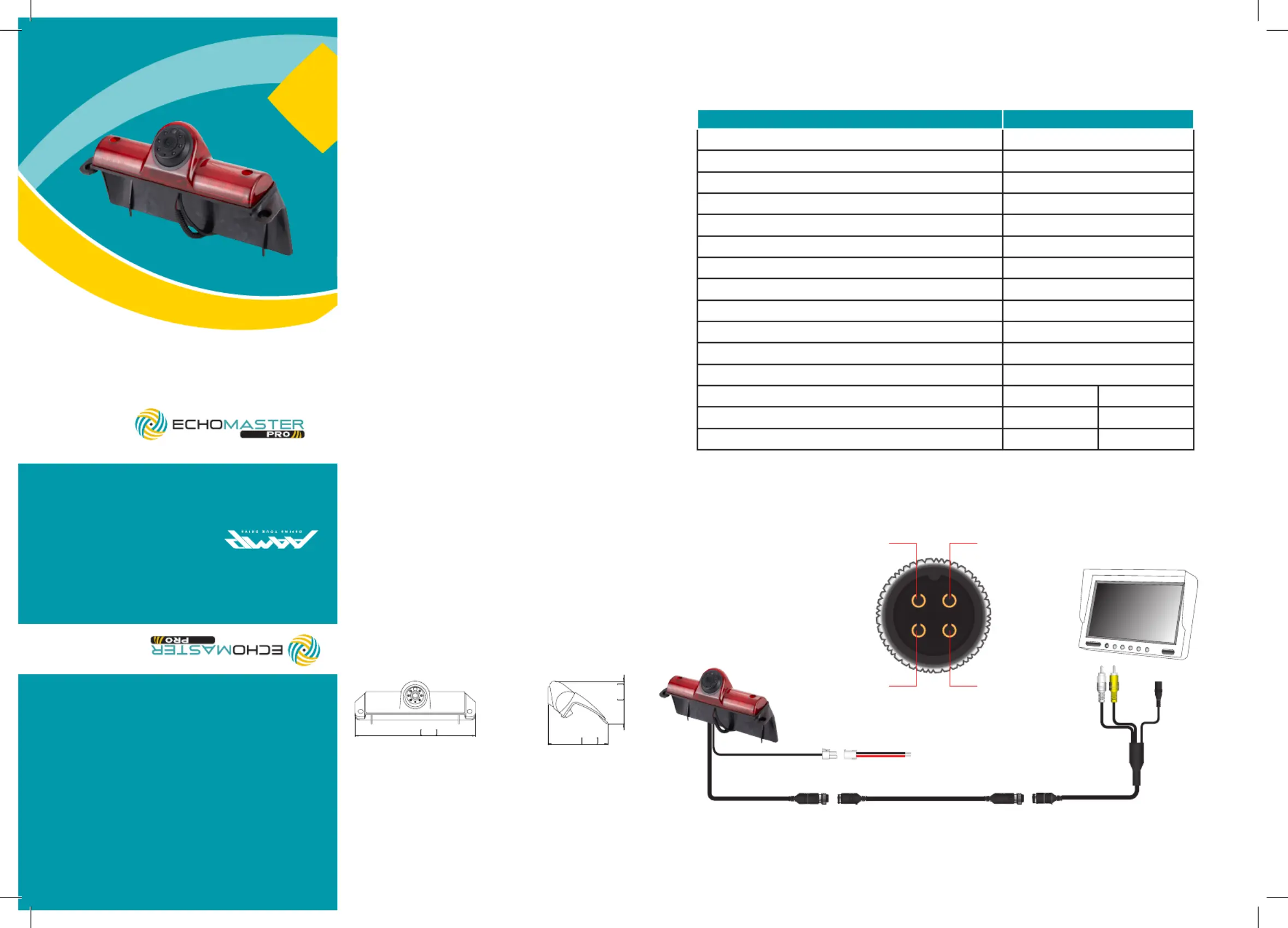

User Manual
Third Brake Light Camera for 2003-2016
Chevy Express / GMC Savana Van
PCAM-GM1
Introduction
Key Features
u 1/4” CMOS Sensor
u 6 IR LEDs
u Operates at 0 LUX
u IP67 Rated
u 170 Degree Viewing Angle
Box Contents
u Camera
u Manual
u Wiring Harness
Wiring Diagram & Pin Out
Dimensions
Specication
PCAM-GM1-P I PCAM-GM1-N
Sensor Type ¼” CMOS
LEDs 6
Illumination 0 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal View NO
Water/Debris-Proof IP67
Audio Yes
Power Supply 9-16V DC
Current <150mA
Working Temperature -30ºC - +70ºC
Dimensions (mm) D (120) x W (243) x H (86)
System PAL NTSC
TV Lines N/A 580
Resolution N/A 762 x 504
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-GM1-P
u PCAM-GM1-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
+12V & GND
Brake Light
GND (Black)
+12V (Red)
VIDEOAUDIO
1
23
4
POWER +12V VIDEO
AUDIOGROUND
1
2 3
4
243.2mm
9.57in
85.9mm
3.38in
120.4mm
4.74in
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - support@aampglobal.com (US)
email - technical.eu@aampglobal.com (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
