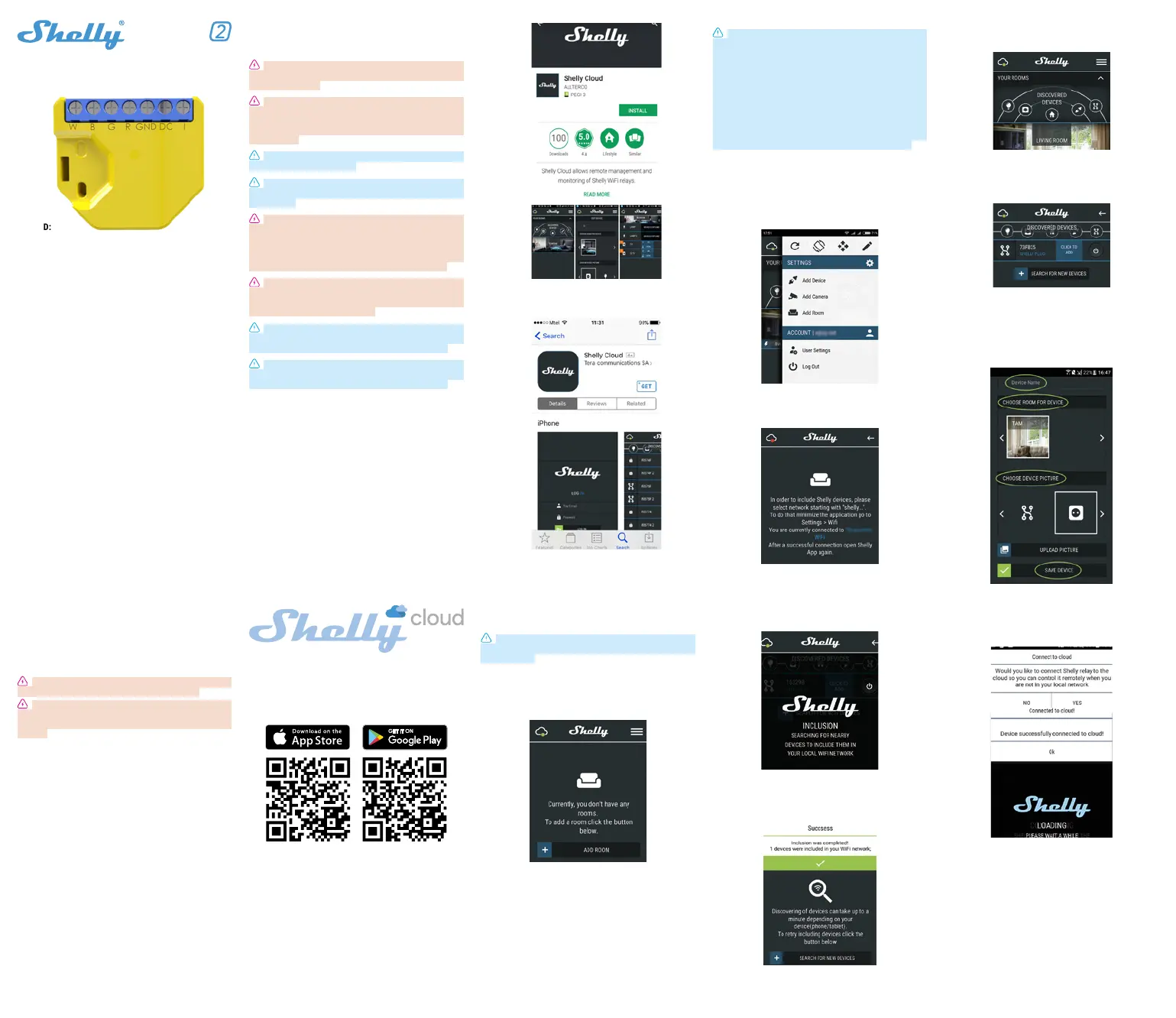

USER GUIDE
Smart WiFi LED Controller
Power supply:
12 or 24V DC
Power output (12V):
• 144W - combined power
• 45W - per channel
Power output (24V):
• 288W - combined power
• 90W - per channel
Complies with EU
standards:
• RE Directive 2014/53/EU
• LVD 2014/35/EU
• EMC 2004/108/WE
• RoHS2 2011/65/UE
Working temperature:
from -20°C to 40°C
Radio signal power:
1mW
Radio protocol:
WiFi 802.11 b/g/n
Frequency:
2400 – 2500 MHz;
Operational range
(depending on local
construction):
• up to 20 m outdoors
• up to 10 m indoors
Dimensions (HxWxL):
43 x 38 x 14 mm
Electrical consumption:
< 1 W
The RGBW2 WiFi LED Controller Shelly® by Allterco Ro-
botics is intended to be installed directly to a LED strip/
light in order to control the color and dimming of the light.
Shelly may work as a standalone device or as an accessory to
a home automation controller.
Technical Information
• Control through WiFi from a mobile phone, PC, automation
system or any other Device supporting HTTP and/or UDP
protocol.
• Microprocessor management.
• Controlled elements: multiple white and colour (RGB) LED
diods.
• Shelly may be controlled by an external button/switch.
CAUTION! Danger of electrocution. Mounting the Device
to the power grid has to be performed with caution.
CAUTION! Do not allow children to play with the button/
switch connected the Device. Keep the Devices for remote
control of Shelly (mobile phones, tablets, PCs) away from
children.
Introduction to Shelly®
Shelly® is a family of innovative Devices, which allow remote
control of electric appli-ances through mobile phone, PC or
home automation system. Shelly® uses WiFi to connect to
the devices controlling it. They can be in the same WiFi net-
work or they can use remote access (through the Internet).
Shelly® may work standalone, without being managed by a
home automation controller, in the local WiFi network, as well
as through a cloud service, from everywhere the User has
Internet access.
Shelly® has an integrated web server, through which the User
may adjust, control and monitor the Device. Shelly
® has two
WiFi modes - access Point (AP) and Client mode (CM). To
operate in Client Mode, a WiFi router must be located within
the range of the Device. Shelly
® devices can communicate
directly with other WiFi devices through HTTP protocol.
An API can be provided by the Manufacturer. Shelly
® devices
may be available for monitor and control even if the User is
outside the range of the local WiFi network, as long as the
WiFi router is connected to the Internet. The cloud function
could be used, which is activated through the web server of
the Device or through the settings in the Shelly Cloud mobile
application.
The User can register and access Shelly Cloud, using either
Android or iOS mobile applications, or any internet browser
and the web site: https://my.Shelly.cloud/.
Installation Instructions
CAUTION! Danger of electrocution. The mounting/
installation of the Device should be done by a qualified
person (electrician).
CAUTION! Danger of electrocution. Even when the
Device is turned off, it is possible to have voltage across its
clamps. Every change in the connection of the clamps has to
be done after ensuring all local power is powered off/
disconnected.
CAUTION! Do not connect the Device to appliances
exceeding the given max load!
CAUTION! Connect the Device only in the way shown in
these instructions. Any other method could cause damage
and/or injury.
CAUTION! Before beginning the installation please read
the accompanying documentation carefully and completely.
Failure to follow recommended procedures could lead to
malfunction, danger to your life or violation of the law.
Allterco Robotics is not responsible for any loss or damage in
case of incorrect installation or operation of this Device.
CAUTION! Use the Device only with power grid and
appliances which comply with all applicable regulations.
short circuit in the power grid or any appliance connected to
the Device may damage the Device.
RECOMMENDATION: Тhe Device may be connected to
and may control electric circuits and appliances only if they
comply with the respective standards and safety norms.
RECOMMENDATION: The Device may be connected to
and may control electric circuits and light sockets only if they
comply with the respective standards and safety norms.
Initial Inclusion
Before installing/mounting the Device ensure that the grid is
powered off (turned down breakers).
Connect the Shelly to the power grid following the wiring
scheme above (g.1). You may choose if you want to use
Shelly with the Shelly Cloud mobile application and Shelly
Cloud service. You can also familiarize yourself with the in-
structions for Management and Control through the embed-
ded Web interface.
Control your home with your voice
All Shelly devices are compatible with Amazon Echo and
Google Home.
Please see our step-by-step guide on:
https://shelly.cloud/compatibility/Alexa
https://shelly.cloud/compatibility/Assistant
MOBILE APPLICATION FOR
MANAGMENT OF SHELLY®
Shelly Cloud gives you opportunity to control and adjust all
Shelly® Devices from anywhere in the world.
You only need an internet connection and our mobile applica-
tion, installed on your smartphone or tablet.
To install the application please visit Google Play (Android - g.
2) or App Store (iOS - g. 3) and install the Shelly Cloud app.
fig. 2 fig. 3
Registration
The rst time you load the Shelly Cloud mobile app, you have to
create an account which can manage all your Shelly
® devices.
Forgotten Password
In case you forget or lose your password, just enter the e-mail
address you have used in your registration. You will then re-
ceive instructions to change your password.
WARNING! Be careful when you type your e-mail address
during the registration, as it will be used in case you forget
your password.
After registering, create your rst room (or rooms), where you
are going to add and use your Shelly devices.
Shelly Cloud gives you opportunity to create scenes for auto-
matic turning on or off of the Devices at predened hours or
based on other parameters like temperature, humidity, light
etc. (with available sensor in Shelly Cloud).
Shelly Cloud allows easy control and monitoring using a mo-
bile phone, tablet or PC.
Device Inclusion
To add a new Shelly device, install it to the power grid fol-
lowing the Installation Instructions included with the Device.
Step 1
After the installation of Shelly and the power is turned on
Specification
RGBW
LEGEN
I - Switch input (AC or DC) for on/off/dimming
DC - + 12/24V DC power supply
GND
-
12/24V DC power supply
R - Red light control
G - Green light control
B - Blue light control
W - White light control
Shelly will create its own WiFi Access Point (AP).
WARNING: In case the Device has not created its own
WiFi network with SSID like shellyrgbw2-35FA58 check if you
have connected Shelly correctly by the scheme in Fig. 1. If
you do not see an active WiFi network with SSID like
shellyrgbw2-35FA58, reset the Device. If the Device has
been powered on, you have to power it off and on again. After
turning the power on, you have 20 seconds to press 5
consecutive times the switch connected DC (SW). Or if you
have physicall access to the Device, press the reset button
once. The LED strip light will begin to flash. After the device
has began to flash, turn the power off and back on again.
Shelly should return to AP Mode. If not, please repeat or
contact our customer support at: support@Shelly.cloud
Step 2
Choose “Add Device”.
In order to add more Devices later, use the app menu at the
top right corner of the main screen and click “Add Device”.
Type the name (SSID) and password for the WiFi network, to
which you want to add the Device.
Step 3
If using iOS: you will see the following screen:
Press the home button of your iPhone/iPad/iPod. Open
Settings > WiFi and connect to the WiFi network created by
Shelly, e.g. shellyrgbw2-35FA58.
If using Android: your phone/tablet will automatically scan
and include all new Shelly Devices in the WiFi network that
you are connected to.
Upon successful Device Inclusion to the WiFi network you will
see the following pop-up:
Step 4:
Approximately 30 seconds after discovery of any new Devic-
es оn the local WiFi network, а list will be displayed by default
in the “Discovered Devices” room.
Step 5:
Enter Discovered Devices and choose the Device you want to
include in your account.
Step 6:
Enter a name for the Device (in the Device Name eld). Choose a
Room, in which the Device has to be positioned. You can choose
an icon or add a picture to make it easier to recognize. Press
“Save Device”.
Step 7:
To enable connection to the Shelly Cloud service for remote
control and monitoring of the Device, press “YES” on the fol-
lowing pop-up.
Shelly Devices Settings
After your Shelly device is included in the app, you can control
it, change its settings and automate the way it works.
To switch the Device on and off, use the respective ON/OFF
button.
To enter at the details menu of the respective Device, simply
click on it’s name.
From the details menu you may control the Device, as well as
edit its appearance and settings.
