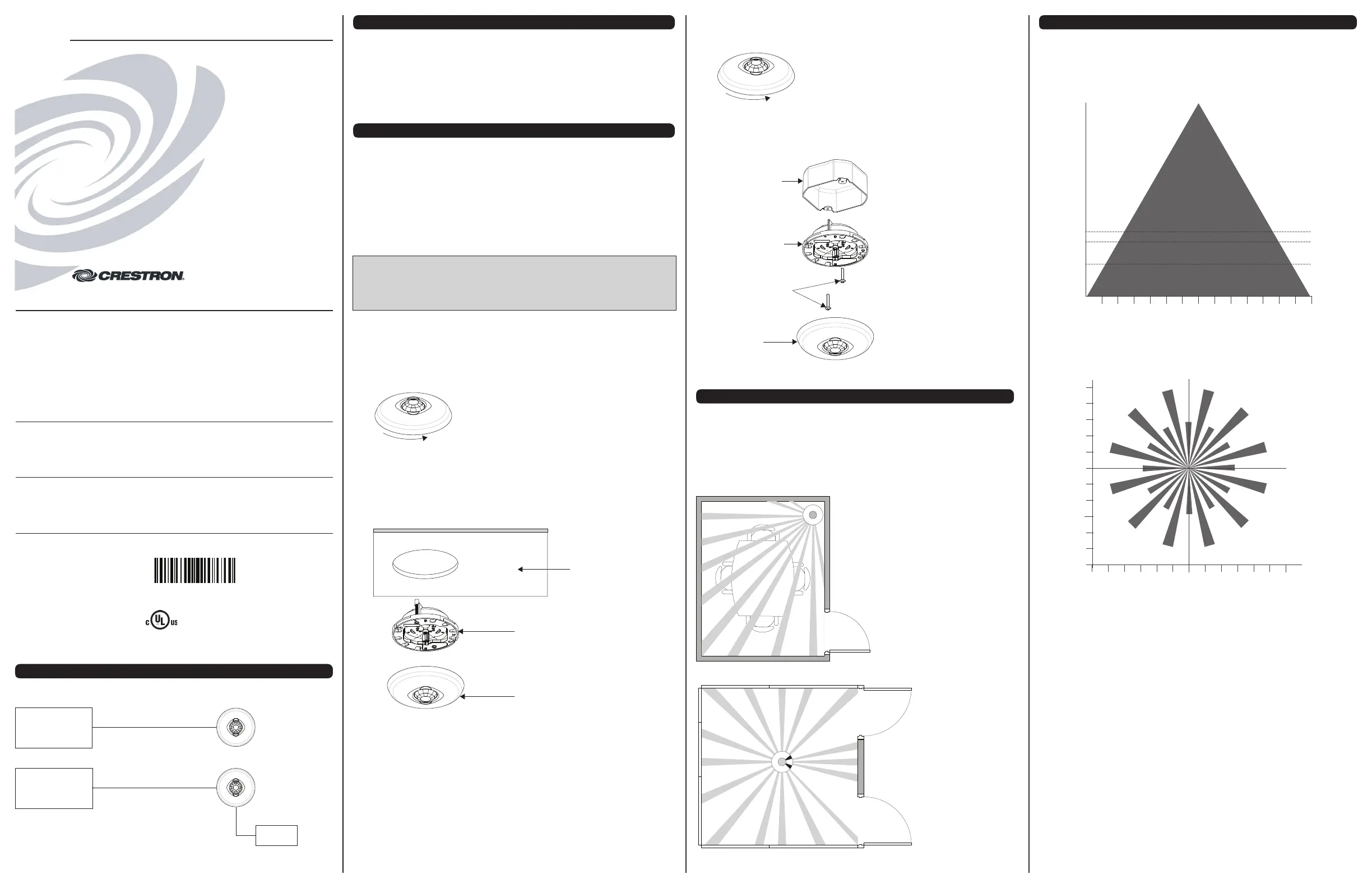

Crestron Electronics, Inc. Installation Guide - DOC. 7529A
15 Volvo Drive Rockleigh, NJ 07647 (2036482)
Tel: 888.CRESTRON 09.13
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
Further Inquiries
To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at
1-888-CRESTRON [1-888-273-7876] or, for assistance within a particular geographic region, refer to the listing of
Crestron worldwide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron’s Online Help at www.crestron.com/onlinehelp.
First-time users must establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the GLS-OIR-C-CN, additional
information may be made available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as
an “Addendum” in the Download column.
WARNING: To avo ock or deid fire, sh , ath turn; off po rc ea use nd power is be ore wer at ci uit br ker or f a test that off f
wiring!
NOTES: Observe the following points.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• This product should be installed by a qualified electrician.
• Sensors must be mounted on a vibration free surface.
PREPARING AND CONNECTING WIRES
Strip the ends of the wires approximately 1/4 in (6 mm). Use care to avoid nicking the conductors. Twist together
the ends of the wires that share a connection. Apply solder only to the ends of the twisted wires. Avoid tinning too
far up the wires or the ends become brittle.
Crestron GLS-OIR-C-CN
Passive Infrared Occupancy Sensor with Cresnet ®
Installation Guide
DESCRIPTION
The Crestron® Passive Infrared Occupancy Sensor with Cresnet
® is a low-voltage passive
infrared (PIR) sensor that is directly wired through Cresnet to automatically control lighting or
any other system wide device. The sensor is typically used to turn lights on when a room or
area is occupied and to shut them off when the room or area is vacated. The exact behavior
of the sensor can be configured via software or the IR remote (GLS-REMOTE-ODT/OIR,
sold separately). The passive infrared motion detection provides high immunity to false
triggering and yields a sensor with a 360 degree 2000 square feet coverage area with
excellent performance. Additionally, an integrated photocell allows for easy and custom
adjustments for even the most robust of daylight harvesting applications.
MOUNTING/MASKING LOCATION DIAGRAM
The supplied masks mount in the sensor cover to block the PIR sensor. The half mask is
supplied to allow half of the sensor to be masked. The perforated mask has twelve 30º
removable segments that allow masking particular areas to prevent undesireable triggers
from affecteng the sensor operation.
Masking is not required in the corner mounting application shown below because it cannot
see through a door. By masking a portion of the sensor, traffic through a hallway can be
ignored as in the second example. The following illustrations provide typical application
examples.
TYPICAL APPLICATION DIAGRAMS
The following diagrams illustrate the typical wiring of a GLS-OIR-C-CN.
Wire GLS-OIR-C-CN
INSTALLATION
The GLS-OIR-C-CN can be installed into a drop ceiling, drywall, or an octagon electrical box.
Refer to the instructions that follow to install the sensor.
The following items are included with the GLS-OIR-C-CN for installation:
1/2 Solid PIR mask (1)•
1/12 Perforated PIR mask (1)•
Hole cutout template (1)•
The following items are required for installation:
Slotted/Phillips screwdriver•
• Pencil
Cutting tools•
NOTE: Before securing the sensor to the ceiling, refer to the “Mounting/Masking Location”
and “Detection Range” sections to choose the best orientation. Avoid areas where false
tripping may occur due to outside motion such as an open door. Identify and avoid areas of
possible vibrations and air currents (e.g., projectors, fans, vents) and mount the sensor at
least 5 feet (2 meters) away from these items.
Install Into Drop Ceiling or Drywall
1. Select the location for mounting the sensor and proper masking for the application.
2. Use the supplied hole cutout template to mark the ceiling where the sensor is to be
mounted.
3. Use cutting tools appropriate for the surface to create a hole in the ceiling.
4. Turn the sensor cover counterclockwise to separate it from the GLS-OIR-C-CN.
Install Into Octagon Electrical Box
1. Select the location for mounting the sensor and proper masking for the application.
2. Turn the sensor cover counterclockwise to separate it from the device.
3. Using a Phillips screwdriver, unscrew the the preinstalled screws from the plastic wings
and remove them from the sensor.
4. Mount the GLS-OIR-C-CN to the octagon electrical box using two screws (not
supplied).
Mounting to Octagon Electrical Box
Cresnet
Crestron
Control System
or CLS-C6
External
Photocell
Cresnet
Crestron
Control System
or CLS-C6
Octagon
Electrical
Box
GLS-OIR-C-CN
(Cover Removed)
Mounting Screws
(Not Supplied)
Cover
5. Place the GLS-OIR-C-CN into the hole and secure the sensor to the drywall or ceiling
tile using the preinstalled screws. The preinstalled screws have plastic “wings” that
secure the occupancy sensor to the ceiling. When the screws are tightened the wings
open and clamp against the surface of the ceiling. The screws should be secured
tightly enough so that the device cannot spin in the ceiling opening. Refer to the
illustration below for a typical mounting scenario.
Mount GLS-OIR-C-CN to Drywall or Drop Ceiling
6. Place the cover on the device and twist to secure. Align the arrows on the device with
the arrows under the cover. Twist the cover clockwise. The cover snaps into place.
Wire GLS-OIR-C-CN with Photocell
5. Place the cover on the device and twist to secure. Align the arrows on the device with
the arrows under the cover. Twist the cover clockwise. The cover snaps into place.
GLS-OIR-C-CN
(Cover Removed)
Cover
Ceiling
0
(0)
5
(2)
10
(3)
15
(5)
20
(6)
25
(8)
5
(2)
10
(3)
15
(5)
20
(6)
25
(8)
30
(10)
(m)
0 (0)
5 (2)
10 (3)
15 (5)
5 (2)
10 (3)
15 (5)
(m)
20 (6)
25 (8)
20 (6)
25 (8)
30
(10)
30 (10)
Top View
8 1/2 ft (2.6 m)
Ceiling Height

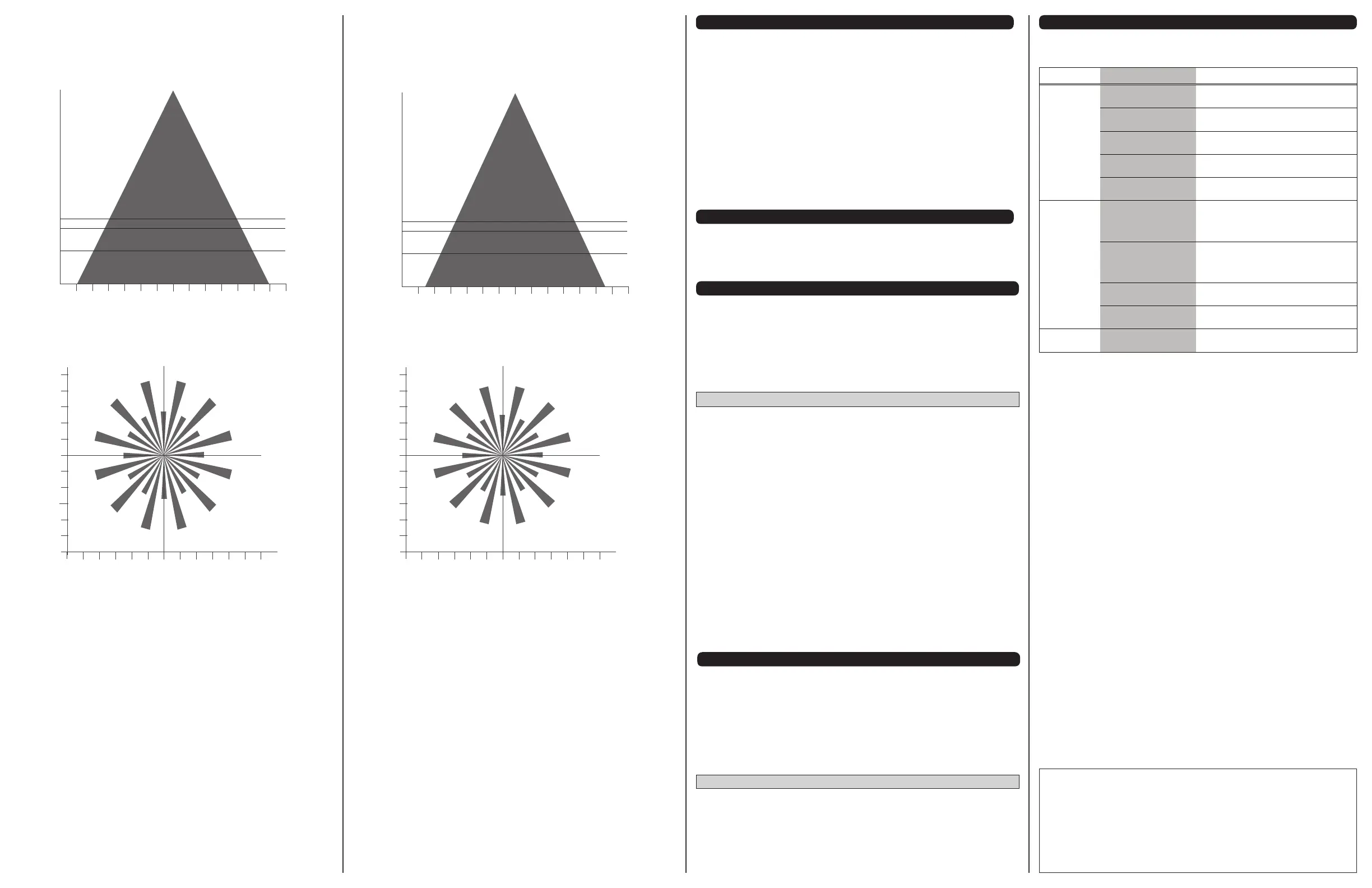

DETECTION RANGE
High PIR Sensitivity Setting
The detection pattern for the high PIR sensitivity setting is shown in the illustrations below.
The first illustration shows the side view of the detection range and the second illustration
shows the detection range based on the top view of the sensor.
0 ft (0 m)
8 ft (2.4 m)
8.5 ft (2.6 m)
10 ft (3 m)
12 ft (4 m)
0
(0)
5
(2)
10
(3)
15
(5)
20
(6)
25
(8)
5
(2)
10
(3)
15
(5)
20
(6)
25
(8)
30
(10)
30
(10)
ft
(m)
SIDE VIEW
